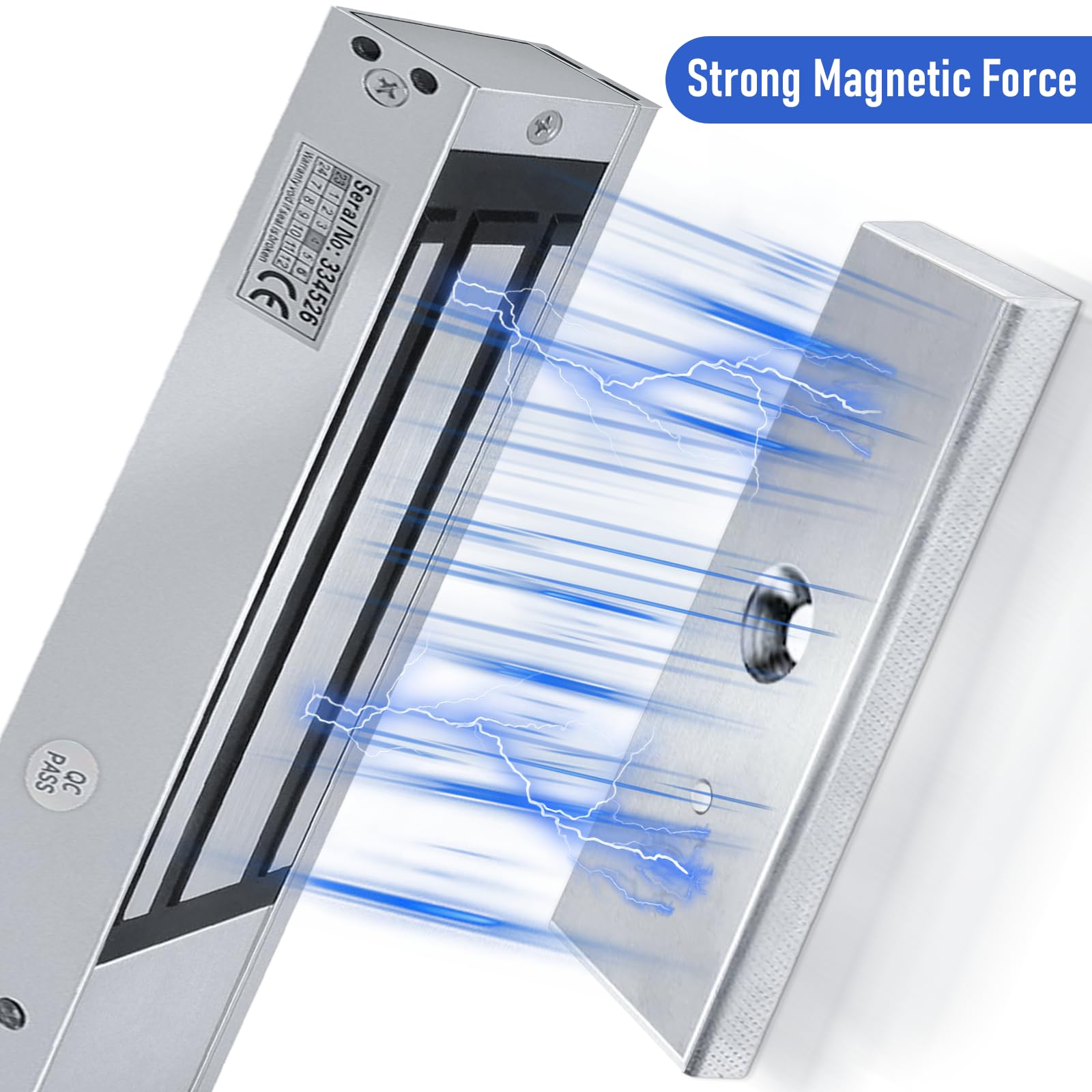

【600lb Holding Force】: The electrical current will pass through the coils inside the magnetic door lock system, creating a magnetic field around the lock, when the armature plate gets close enough, it will be drawn Automatically, and once locked up, a 280kg/600lb holding force will be generated between them, which is impossible for any grown man trying to break it apart with bare hand.

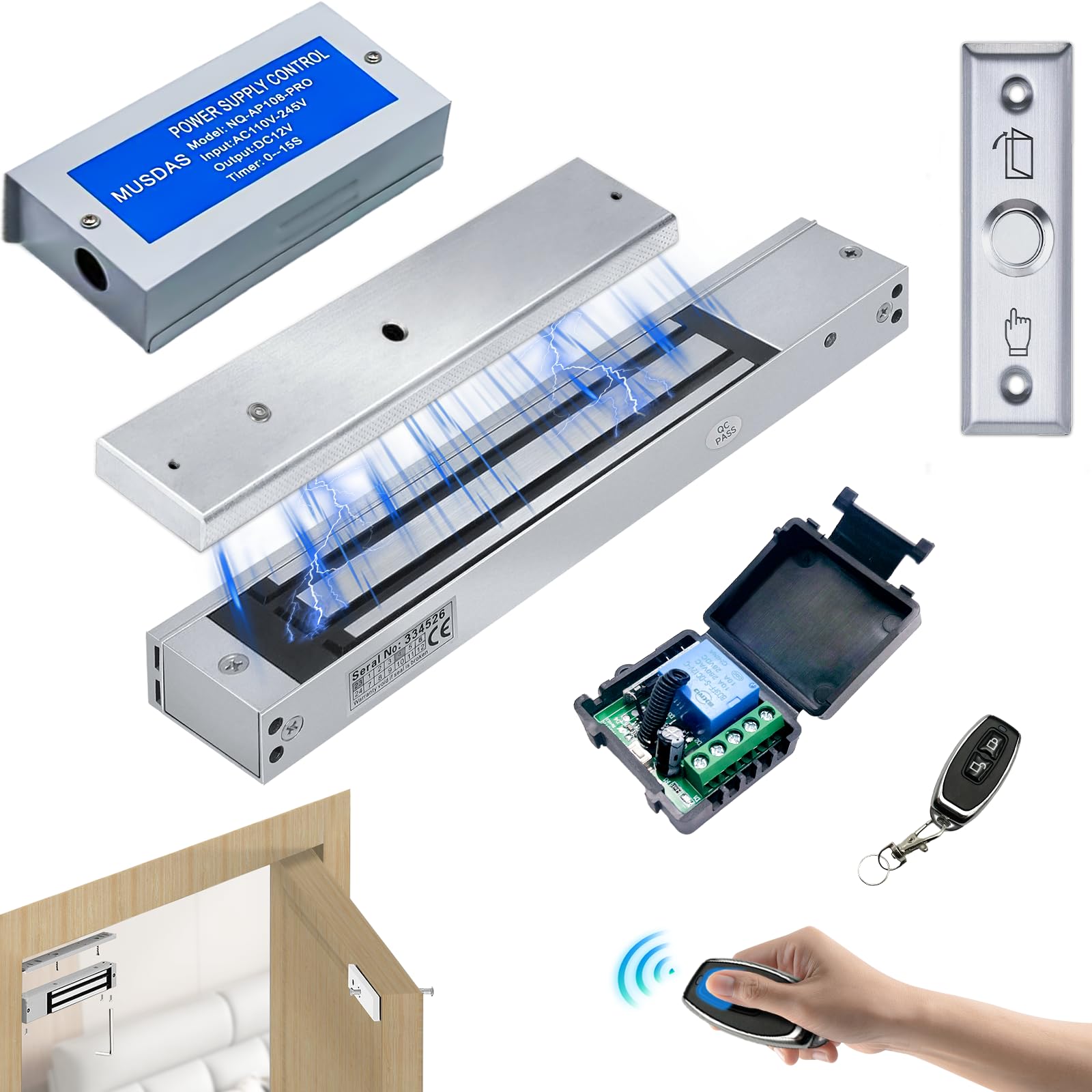

【Door Access Control System】: The magnetic door lock kit contains 2 Remote Controls, it can be operated within 100 FT, just a simple press and the door will be opened. It can also be operated by the Exit button.
【Current Protection】: A power supply transformer is included in the electromagnetic door lock kit to prevent overvoltage. Operation output 12V/current 480mA. For your safety concern, we suggest you ask for advice from local electricians if you're not sure about the connection of the power box's landing terminals.

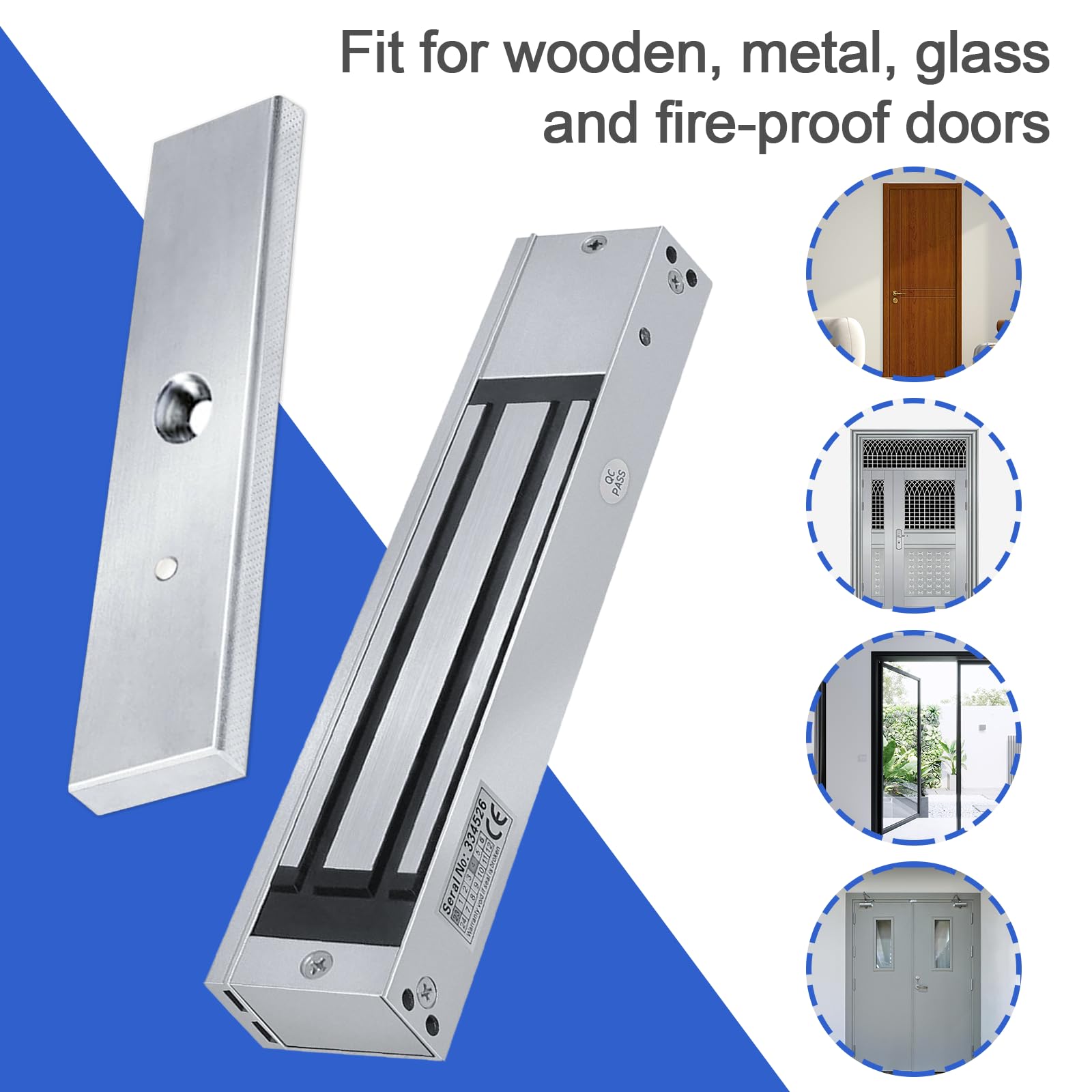

【Wide Applications】: The magnetic lock can be applied to most door types such as wooden doors, metal doors, fire-proof doors and glass doors. Fits both business and home.

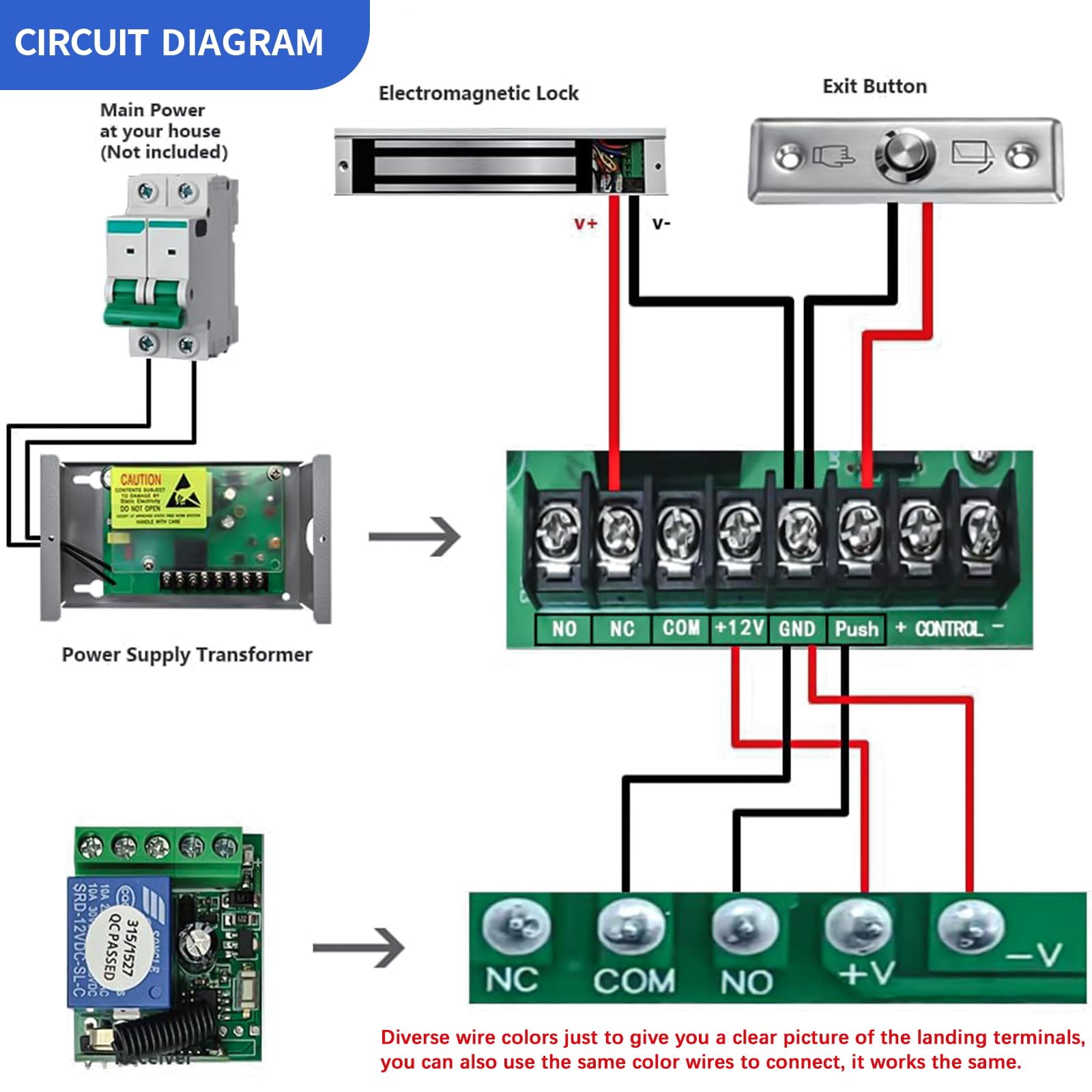

【Wiring Tips】: Please follow the photo named 'CIRCUIT DIAGRAM' above to connect the wire, should you have any concerns, please contact us, we'll help you right away.
