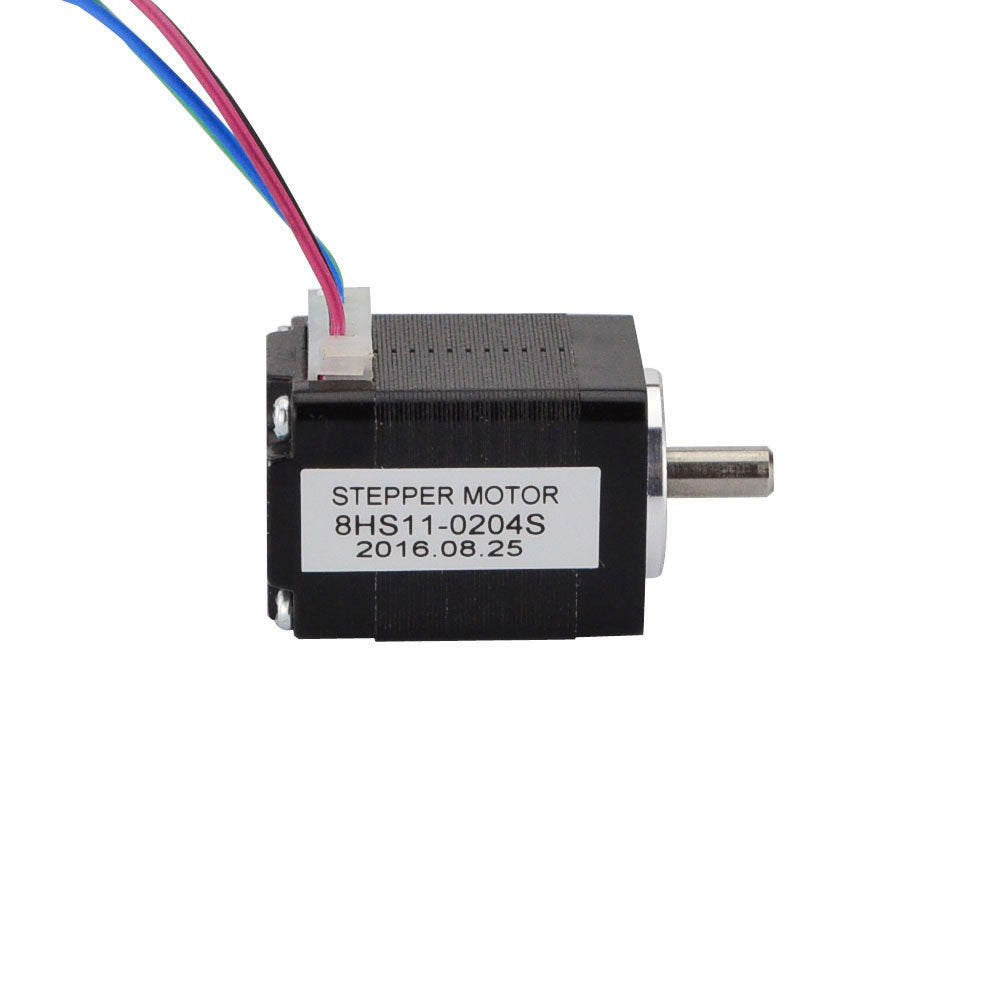

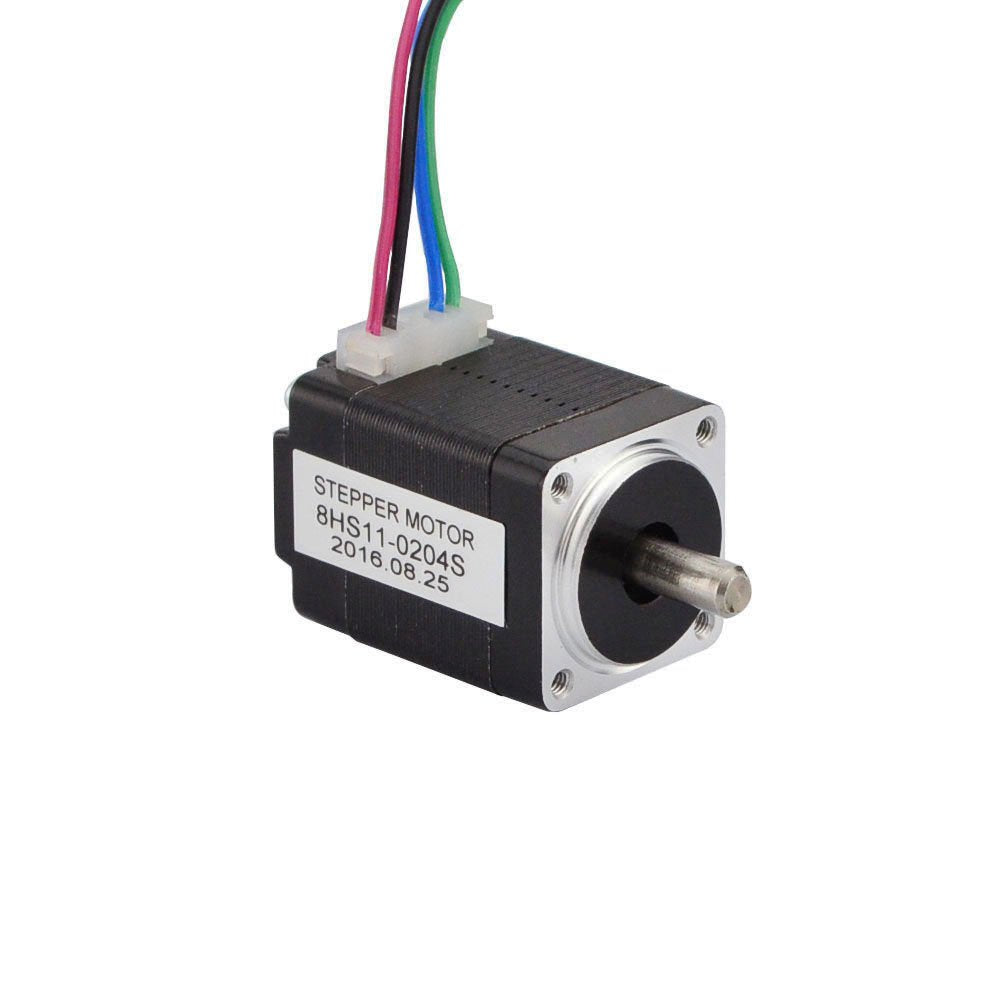

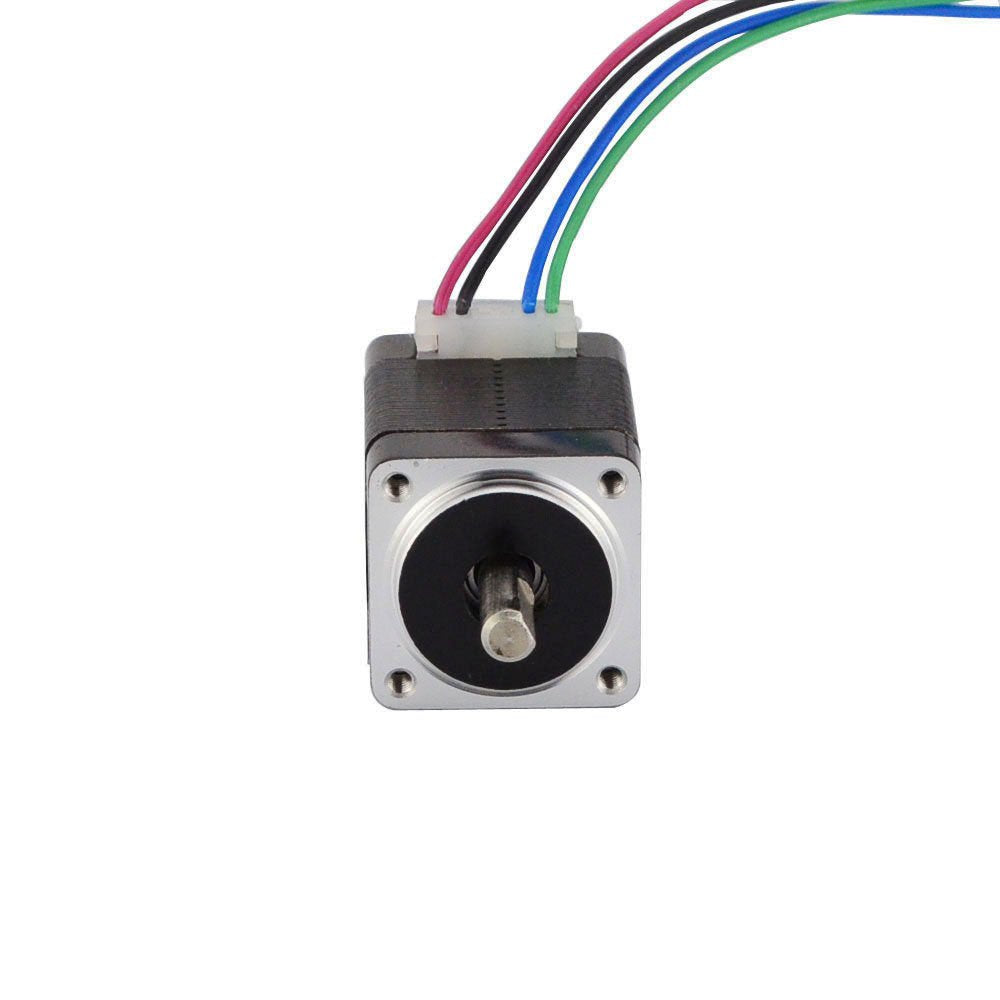

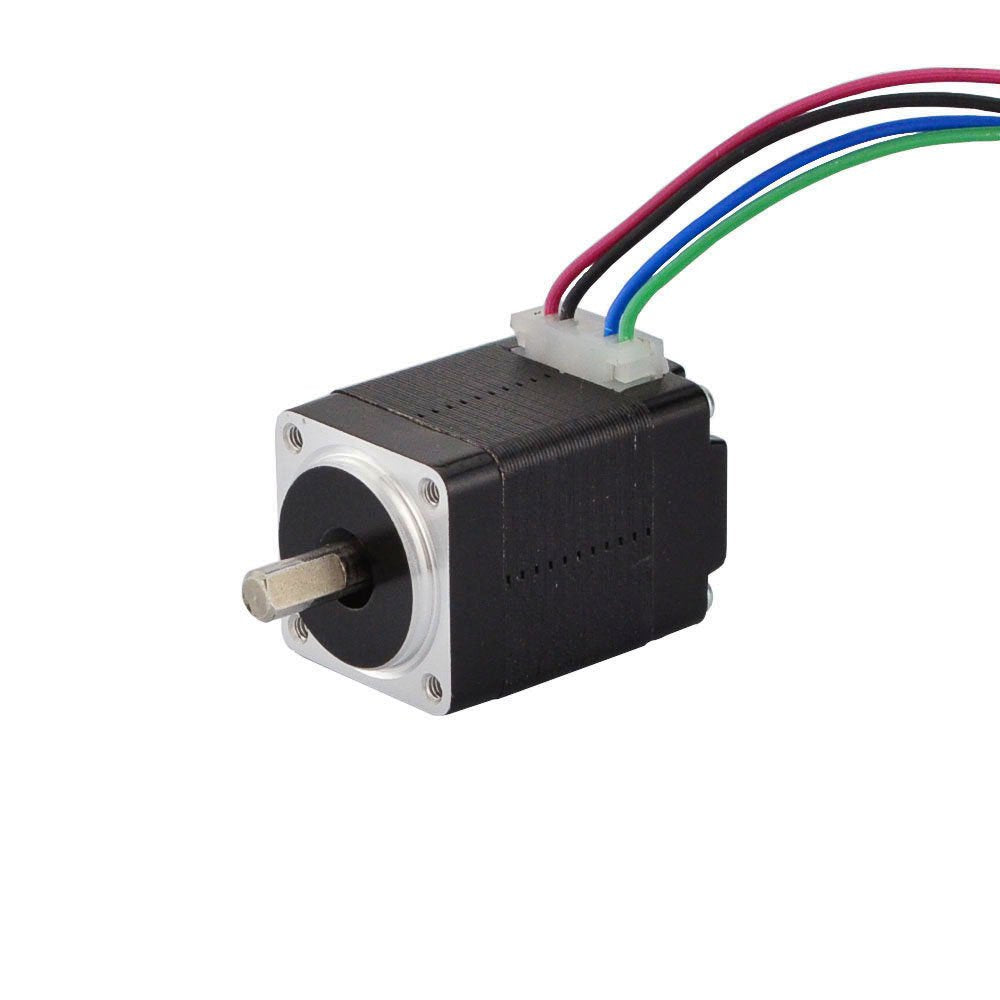

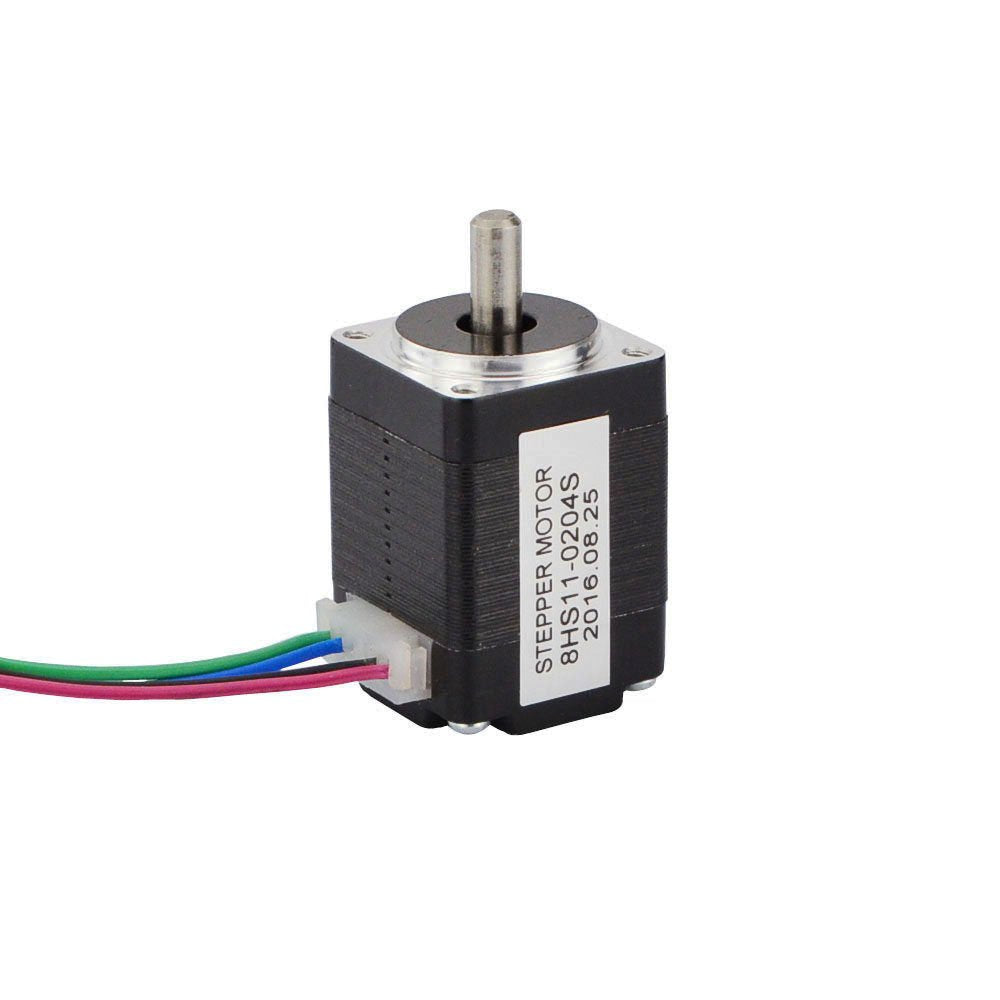

This Hybrid Bipolar Stepper Motor Is The Miniature Stepper Motor We Carry, It With 1.8 Deg. Step Angle (200 Steps/Revolution). Each Phase Draws 200 Ma At 4.8 V, Allowing For A Holding Torque Of 1.6Ncm(2.3Oz.In). Electrical Specification: * Manufacturer Part Number: 8Hs11-0204S * Motor Type: Bipolar Stepper * Step Angle: 1.8 Deg. * Holding Torque: 1.6Ncm(2.3Oz.In) * Rated Current/Phase: 0.2A * Phase Resistance: 24Ohms * Inductance: 8Mh+/-20%(1Khz) Physical Specification: * Frame Size: 20 X 20Mm * Body Length: 28Mm * Shaft Diameter: 4Mm * Shaft Length: 10Mm * D-Cut Length: 7Mm * Number Of Leads: 4 * Lead Length: 300Mm * Weight: 60G Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make Sure The Motor Connect To A Constant Current Or Chopper Drive Controller Before You Test Motor. Connecting The Motor Directly To A Power Supply Will Destroy The Motor.
