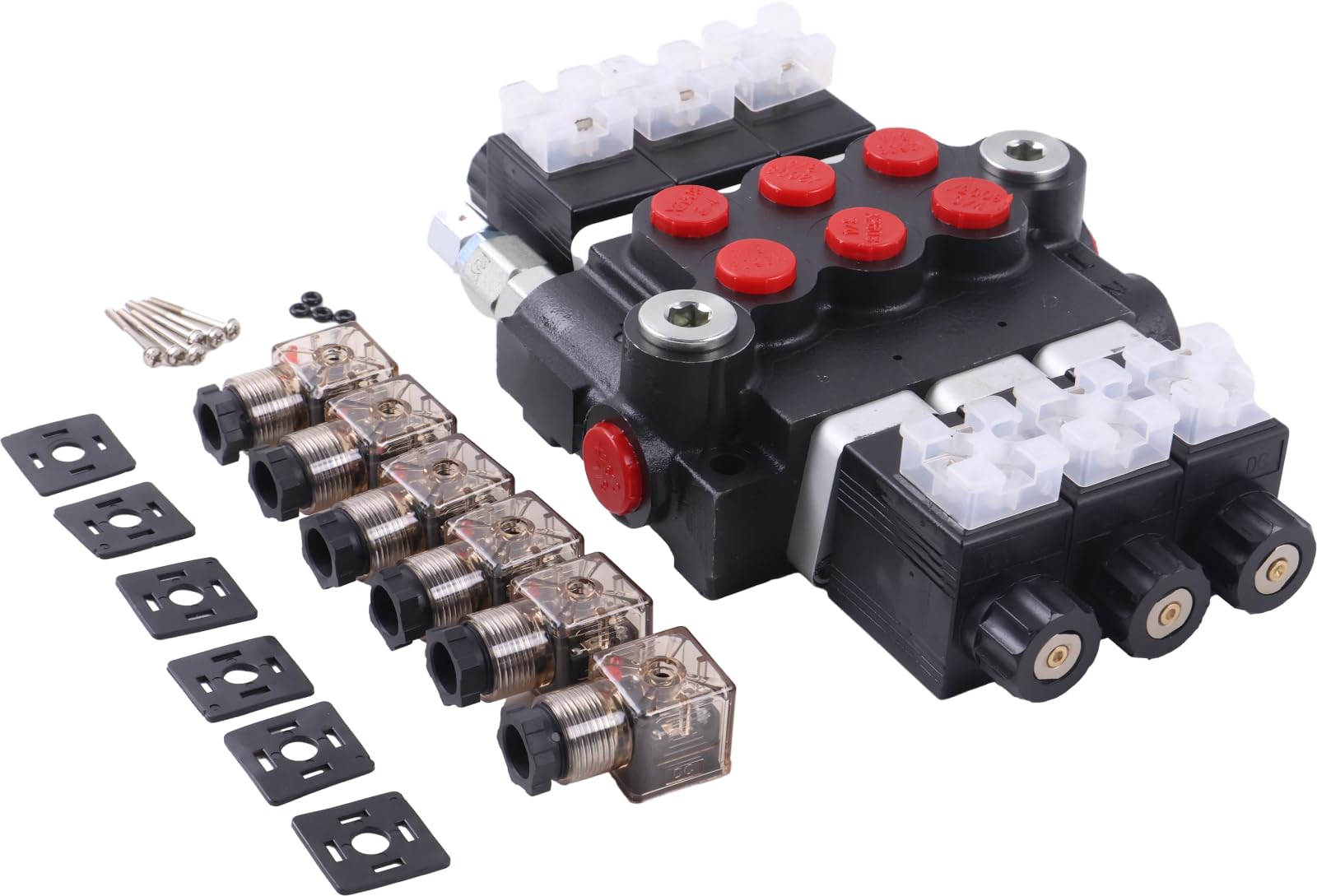

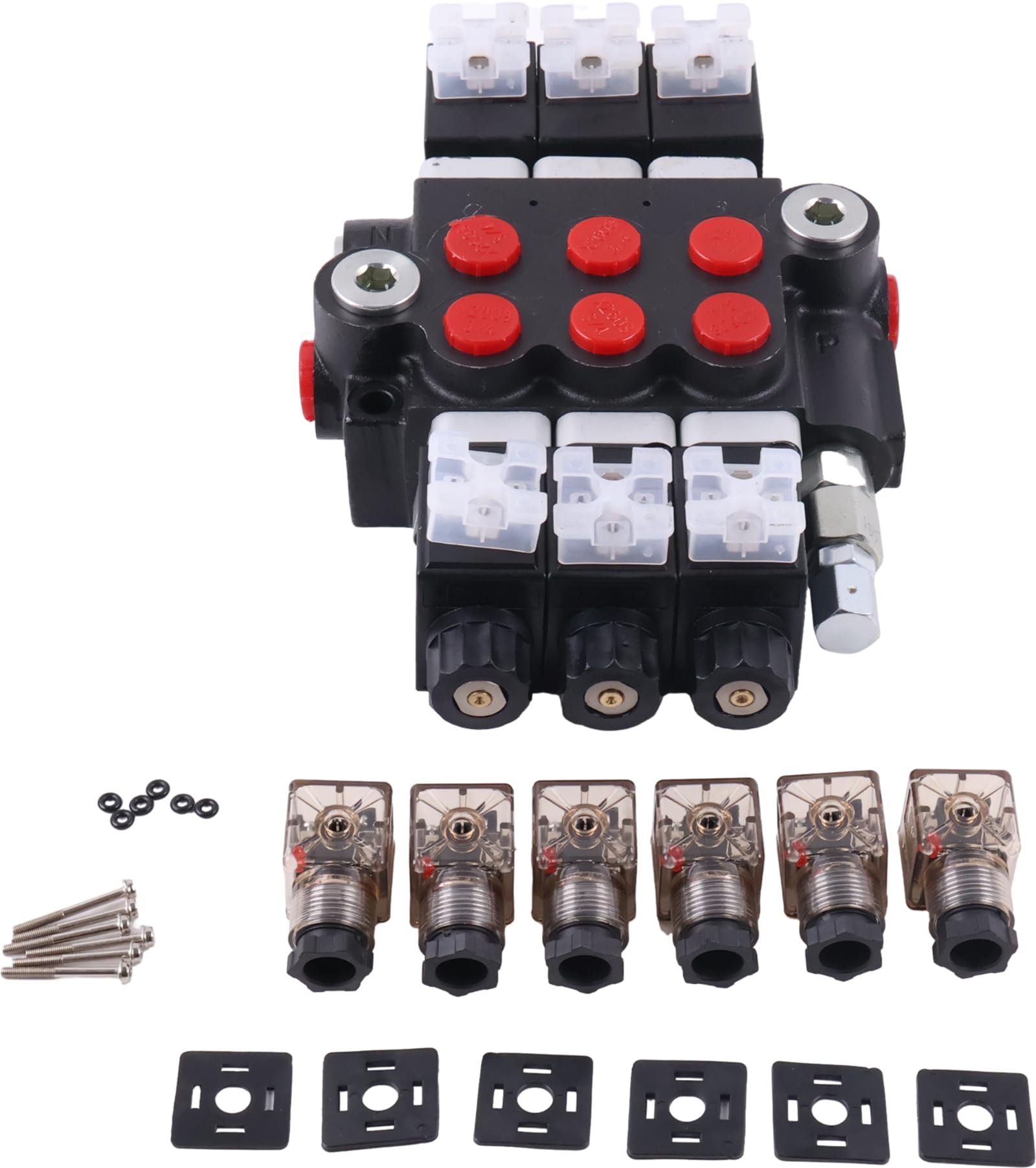

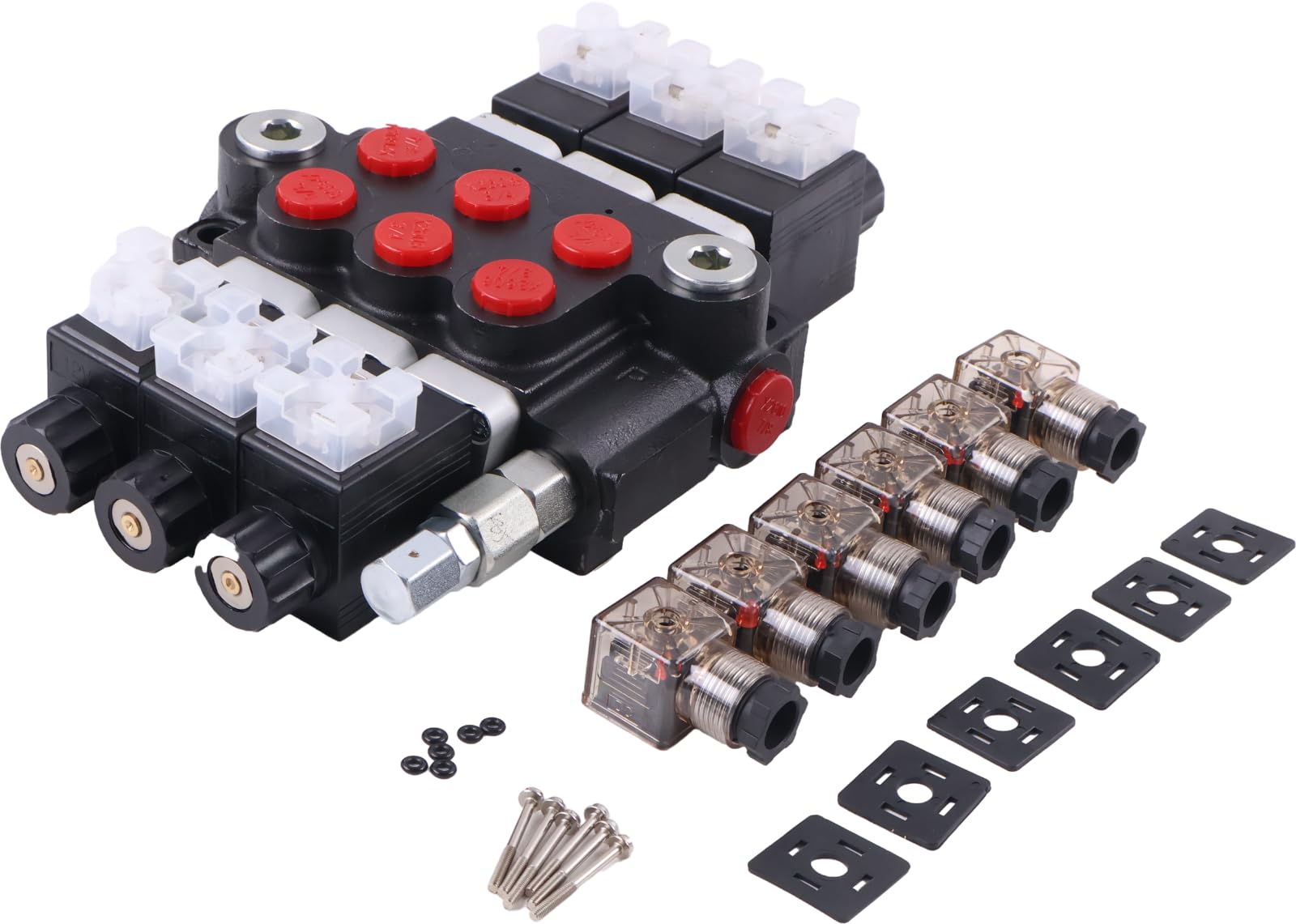

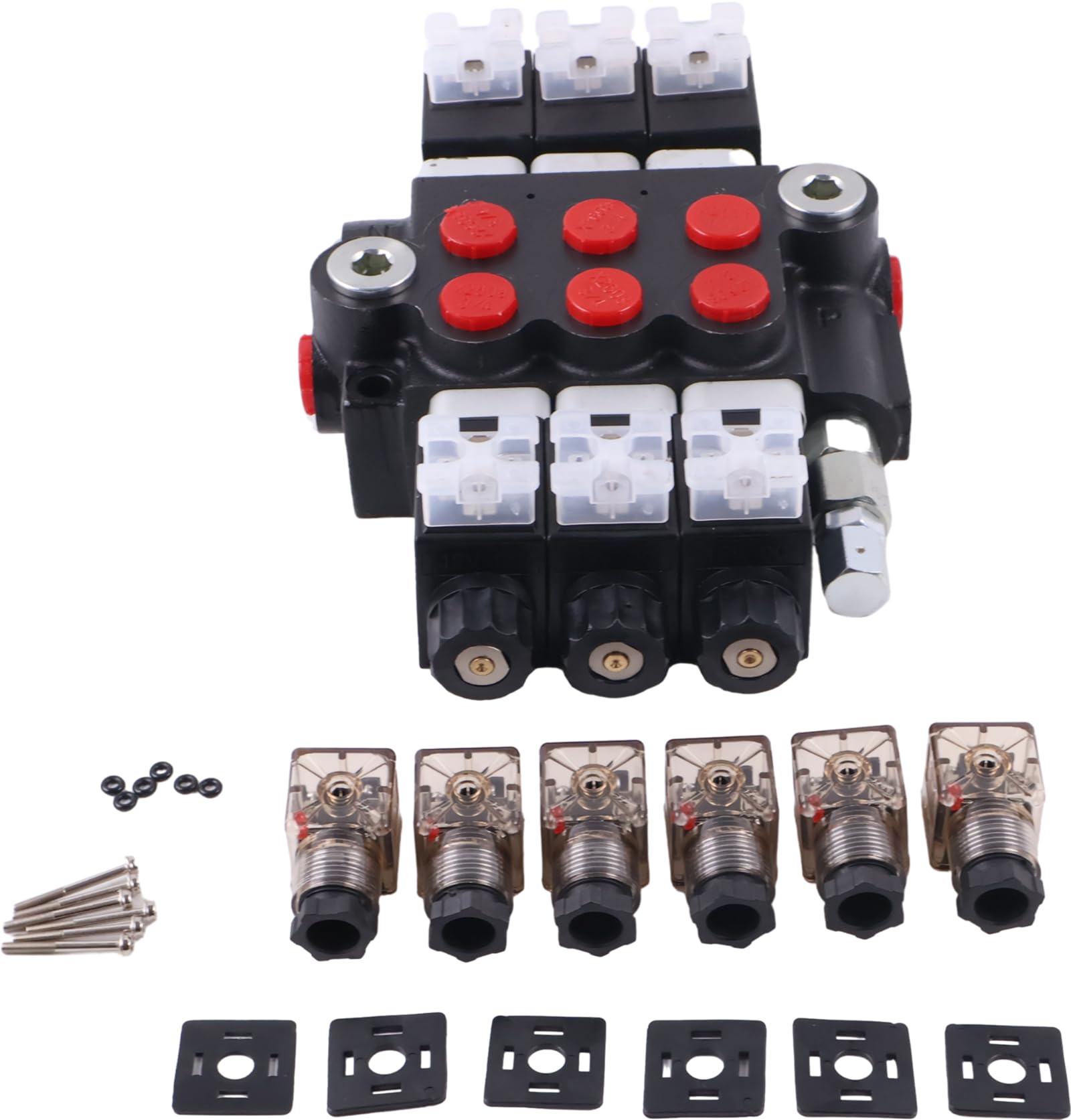

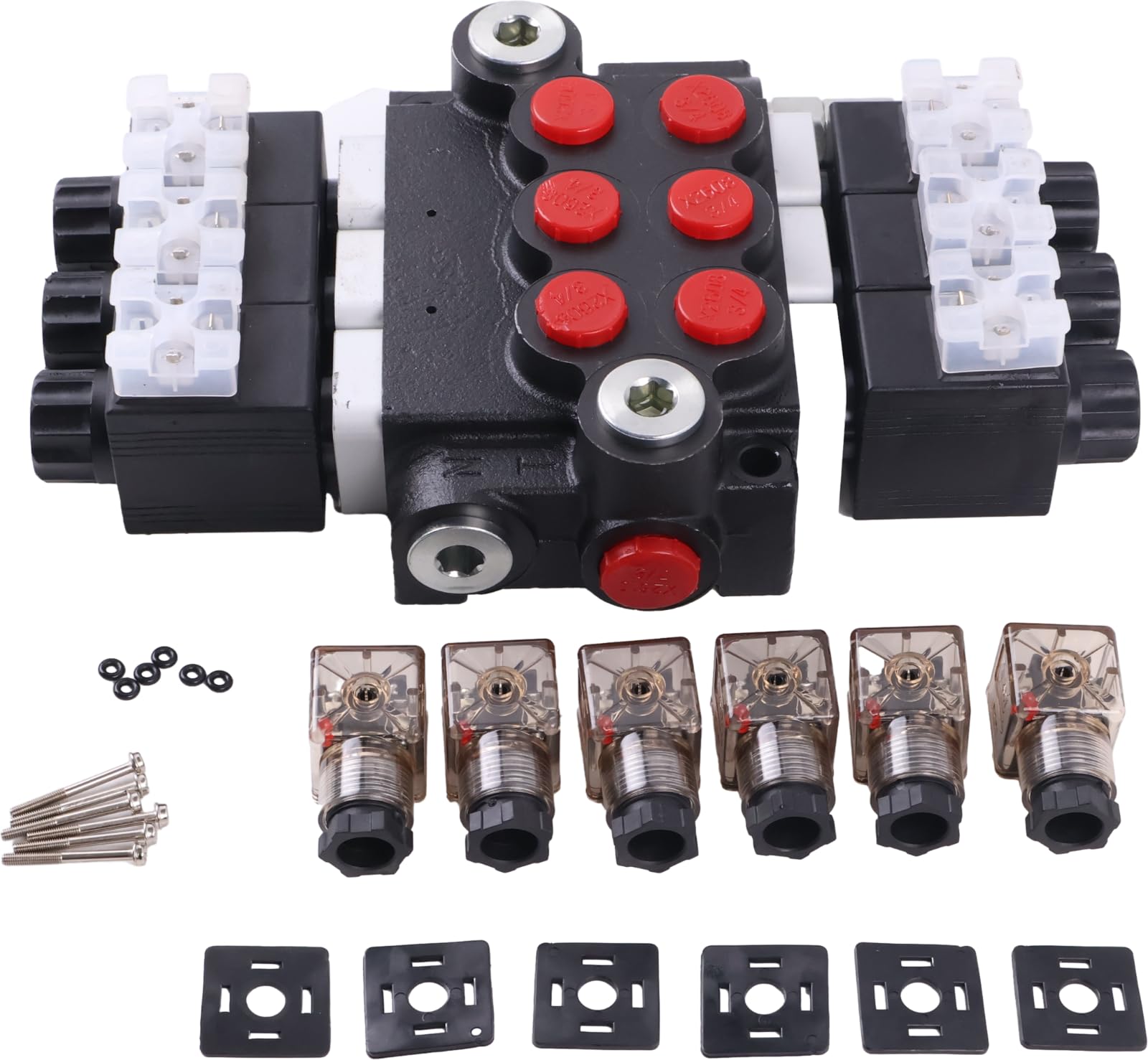

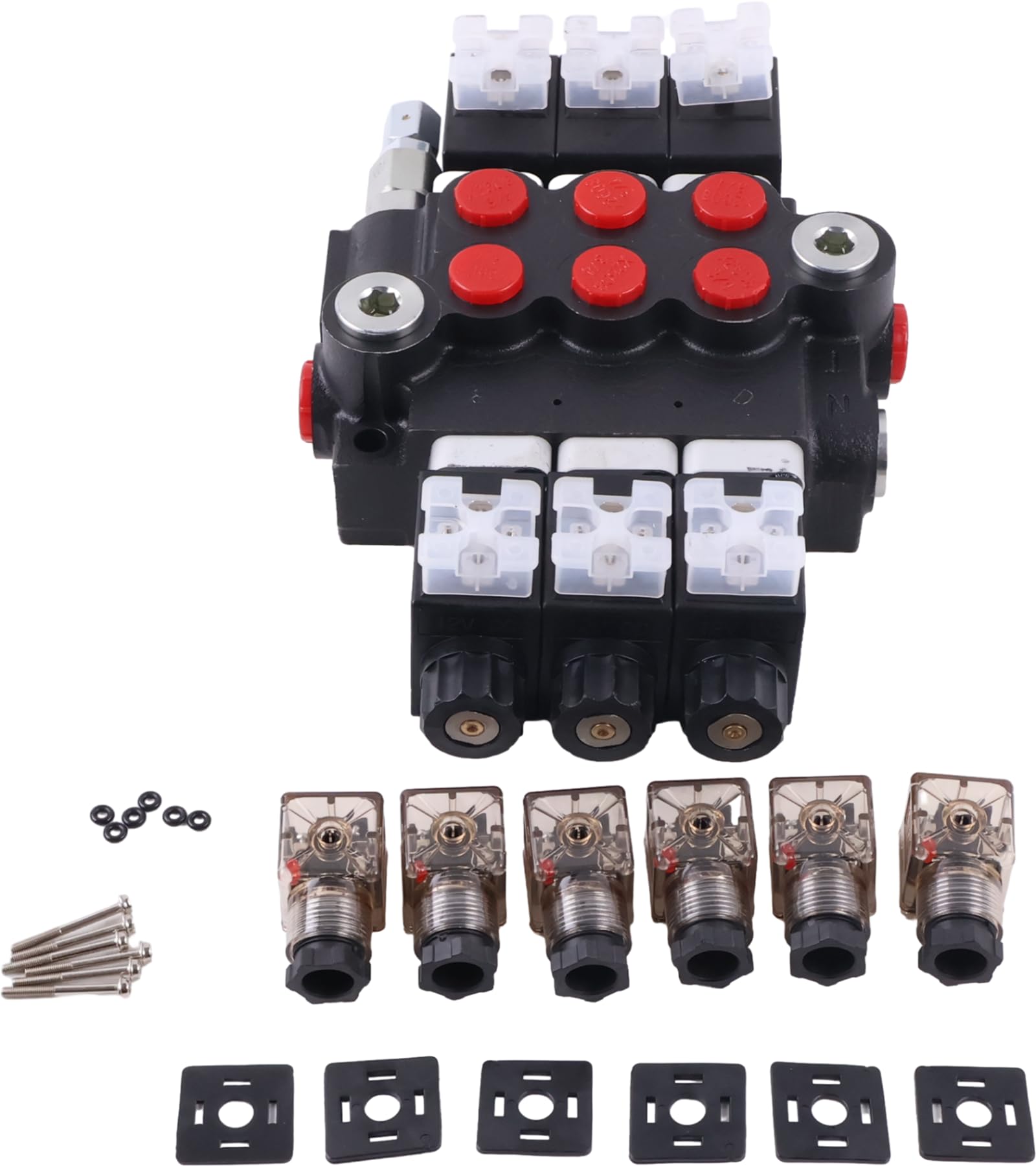

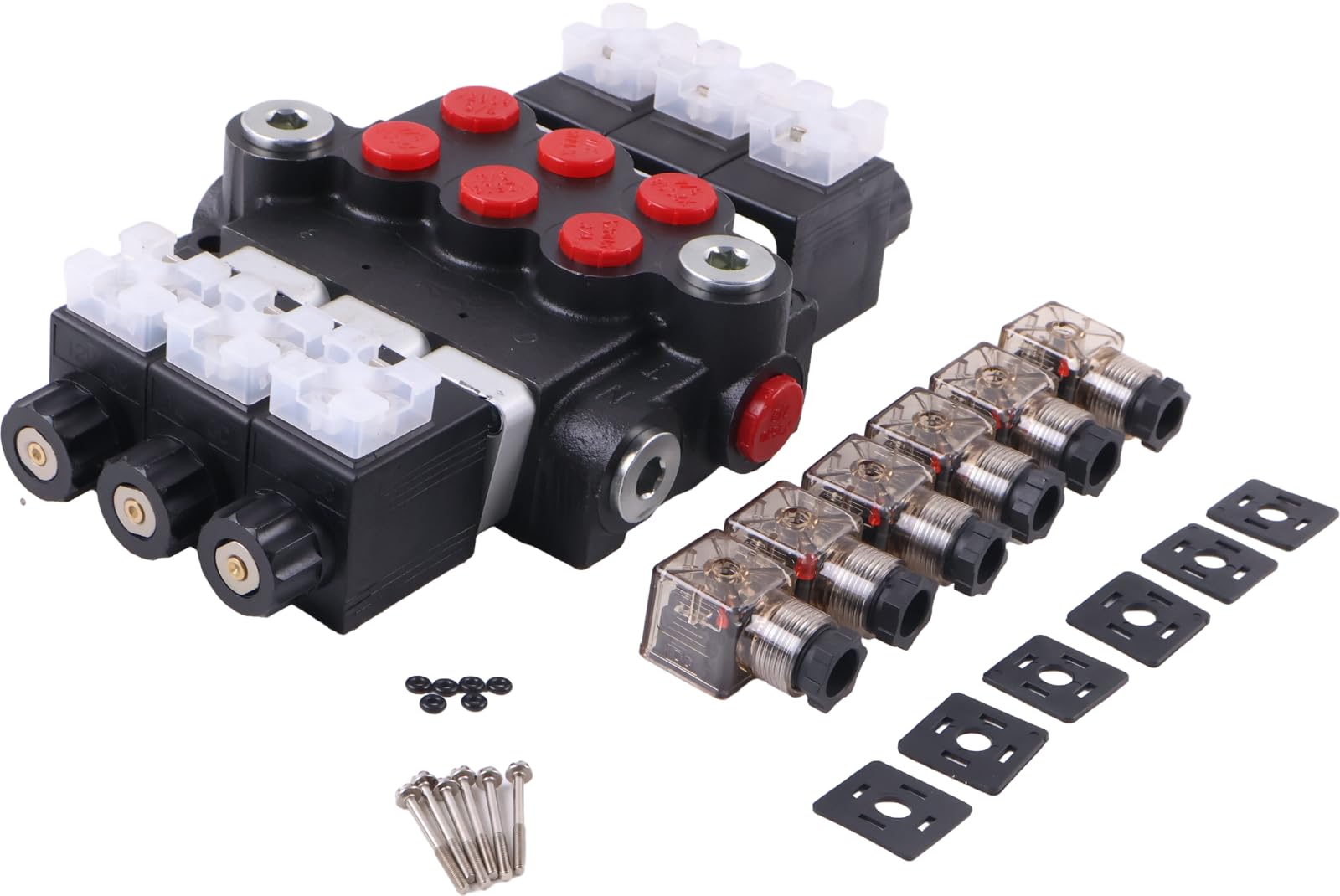

Solarhome 3 Spool Solenoid 12V DC Hydraulic Control Valve Open Center Double Acting 13 GPM 3600 PSI SAE Ports Compatible With Tractors Loaders Log Splitters

Brand: Solarhome

Color: Black

Features:

• Connector ISO 4400; Flow 13 GPM; 3600 PSI MAX Pressure
• Emergency manual override; Adjustable release valve; 4 Way 3 Positions
• Fluid temperature from 5 to 176F; Mounting with 2 bolts M8
• Double acting 3-pos, with open in neutral position; Durable cast iron body
• Fluid temperature from 5 to 176F; Mounting with 2 bolts M8

model number: 13 GPM 3600 PSI

Part Number: 13 GPM 3600 PSI

Details: Connector ISO 4400; Flow 13 GPM; 3600 PSI MAX Pressure
Emergency manual override; Adjustable release valve; 4 Way 3 Positions
Inlet port SAE 10; Outlet port SAE 10; Working ports SAE 8
Double acting 3-pos, with open in neutral position; Durable cast iron body
Fluid temperature from 5 to 176F; Mounting with 2 bolts M8

Package Dimensions: 11.8 x 9.1 x 4.3 inches
