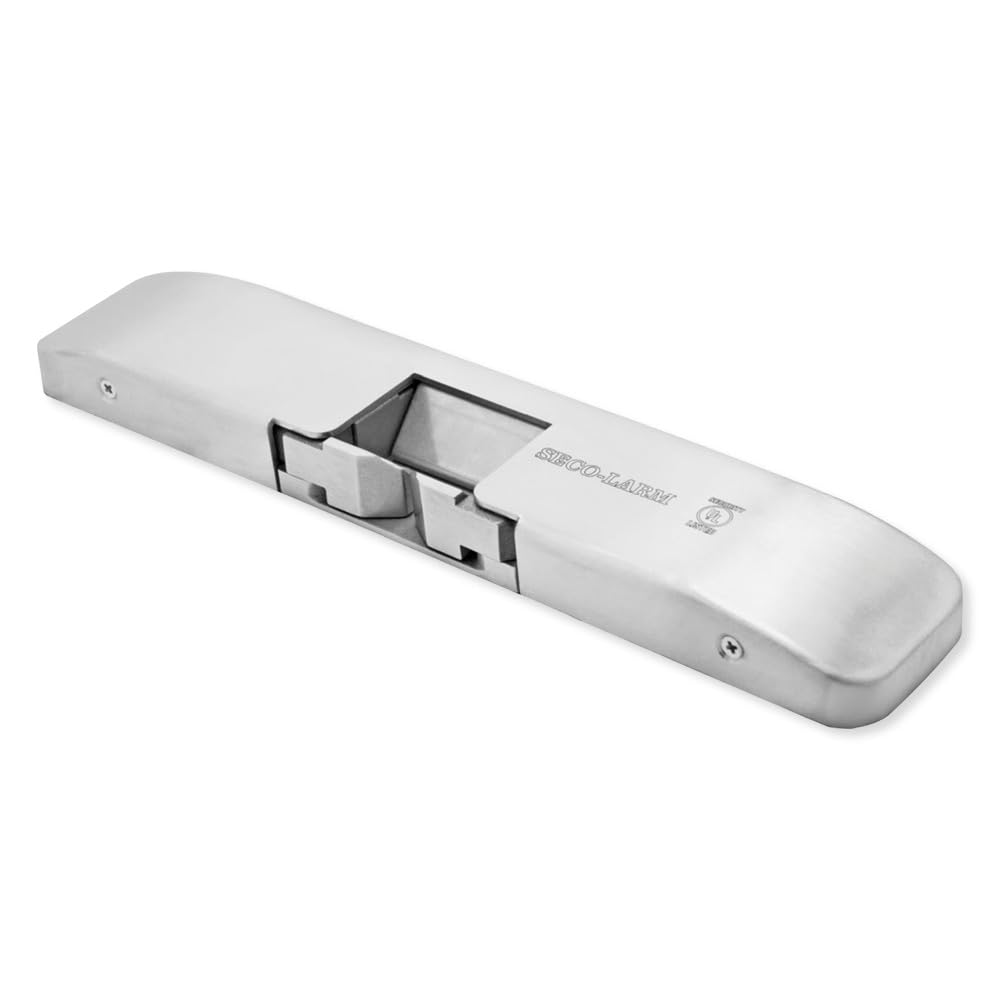

Seco-Larm SD-998C-D3Q Surface-Mount 3/4" Tamper-Resistant Electric Rim Strike, Concealed Mounting Screws, 1500-lb Jaw Strength, 3/4" (19mm) Thick Metal Housing, 70ft-lb Dynamic Strength, 12/24VDC

Brand: Seco-Larm

Features:

• Non-polarized connection, Horizontal adjustment
• Accommodates up to 3/4' Pullman latch, Reversible non-handed design
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
• Stainless steel construction, Surface-mount on metal or wood frames
• For Indoor Use Only, Field-selectable for fail-safe or fail-secure operation

Binding: Electronics

model number: SD-998C-D3Q

Part Number: SD-998C-D3Q

Details: Seco-Larm SD-998C-D3Q Surface-Mount 3/4' Tamper-Resistant Electric Rim Strike, Concealed Mounting Screws, 1500-lb Jaw Strength, 3/4' (19mm) Thick Metal Housing, 70ft-lb Dynamic Strength, 12/24VDC
The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (3/4' throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation. Key Features Tamper-resistant 12/24 VDC Operating voltage Non-polarized connection Horizontal adjustment Accommodates up to 3/4' Pullman latch Reversible non-handed design Stainless steel construction Surface-mount on metal or wood frames Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G For Indoor Use Only Static strength – 1,500-lb (6673N) Tested for 250,000 cycles (UL Tested) Field-selectable for fail-safe or fail-secure operation Spacers included: 3x 1/32' (0.9mm) The SD-998C series is intended to be used with UL Listed Exit Hardware The SD-998C series shall not impair the intended operation of an emergency unit The SD-998C series shall not impair the operation of panic hardware mounted on the door UL 294 and 1034 Listed Specifications Operating Voltage: 12/24 VDC Current Draw: 540mA@12VDC, 270mA@24VDC Latch Throw: 3/4' Dynamic strength: 70ft-lb (95J) Destructive attack: Level I Line security: Level I Standby power: Level I Operating Temperature: 14°~120°F (-10°~49°C) Operating Humidity: 0~85% Dimensions: 9'x1-3/4'x3/4' (229x45x19 mm)

EAN: 0676544020417

Package Dimensions: 10.0 x 2.8 x 2.2 inches
