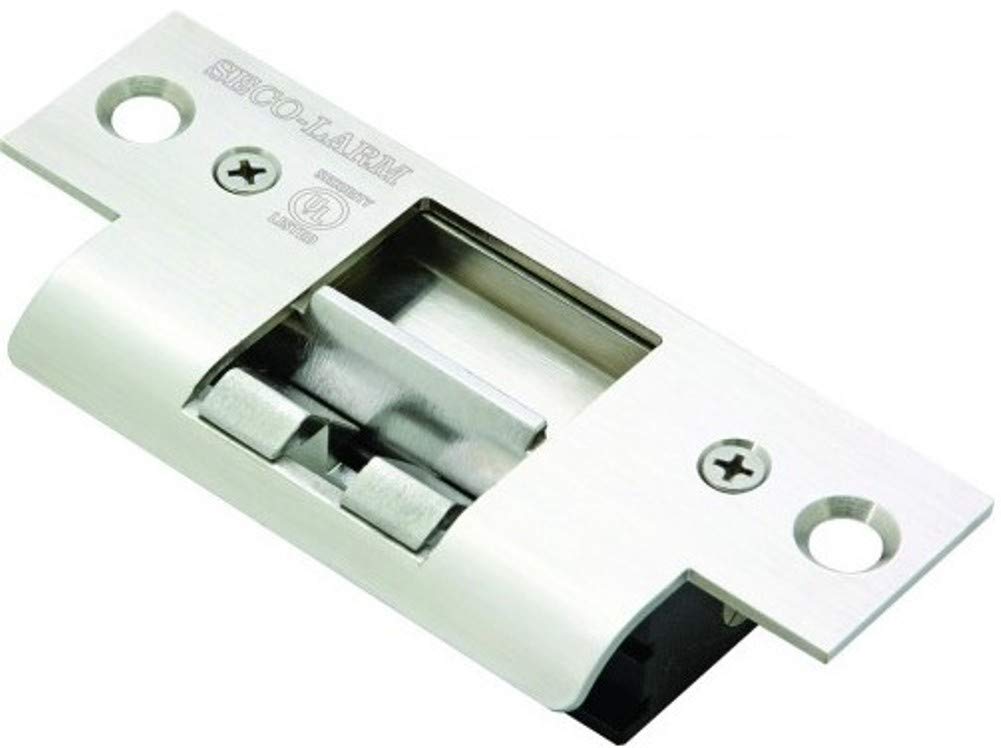

Seco-Larm SD-995C-D3Q Door Strike, No Cut

Brand: Seco-Larm

Features:

• Converts a cylindrical lock set into an electronic access controlled locking system
• Can be combined with an optional SECO-LARM digital keypad (sold separately) for keyless high security
• Fits either right handed or left-handed doors due to its reversible non-handed design
• Field-selectable for fail safe or fail-secure operation
• Static strength 1,500 lbs. (680kg) and tested to 100,000 cycles (UL Tested)

Binding: Tools & Home Improvement

model number: SD-995C-D3Q

Part Number: SD-995C-D3Q

Details: The Seco-Larm No-Cut Electric Door Strike is used to convert a cylindrical lockset into an electronic access-controlled locking system. This 'no-cut' model is uniquely designed to fit most metal or wood doors with only minimal cutting required of the door frame beyond the hole for the strike. It's also field-selectable for fail-safe or fail-secure operation and has a reversible, non-handed design so it can fit on a right-handed or left-handed door. Converts a cylindrical lockset into an electronic access-controlled lock Field-selectable for fail-safe or fail-secure operation Works with any cylindrical door locking system Provides 1,500-pound holding force/static strength Uses non-polarized connection to access control or egress device Stainless steel keeper for strength and durability Powered by a solenoid, not a buzzer coil (12VDC)
The strike can be connected to a digital keypad or other entry device. It features a low-profile design to support use with most metal doors and has a stainless-steel keeper for strength and durability. It also includes mounting tabs for when mounting to hollow aluminum and metal doors.

Contents
Door Strike (2) Electrical Connectors (2) Wiring Connectors (2) Mounting Tabs (2) Wood Screws (4) Machine Screws (2) Machine Screws (narrow) (2) Security Screws (2) Anchor Nuts Manual

Notes
For indoor use only. This strike has NO horizontal or vertical adjustments.

Technical Details
Manufacturer Part #: SD-995C-D3Q UPC: 676544019282 Operating Voltage: 12/24 VDC Current Draw: 12VDC 24VDC Latch Throw: 9/16 inch (15mm) Keeper Width: 1-7/16 inch (36mm) Static Strength: 1,500 lb. (680kg) Dynamic Strength: 70 lb.-ft (9.68kg-m) Endurance: 100,000 cycles (UL tested) 1,000,000 cycles (factory tested) Operating Temperature: 32° to 120° F (0° to 49° C) Operating Humidity: 0 to 85% Dimensions: 4-7/8 x 1-1/4 x 1-1/16 inches (124 x 32 x 27.5 mm) Credentials: CE, RoHS, UL Warranty: 3 Years

EAN: 0676544019282

Package Dimensions: 8.6 x 3.5 x 2.4 inches
