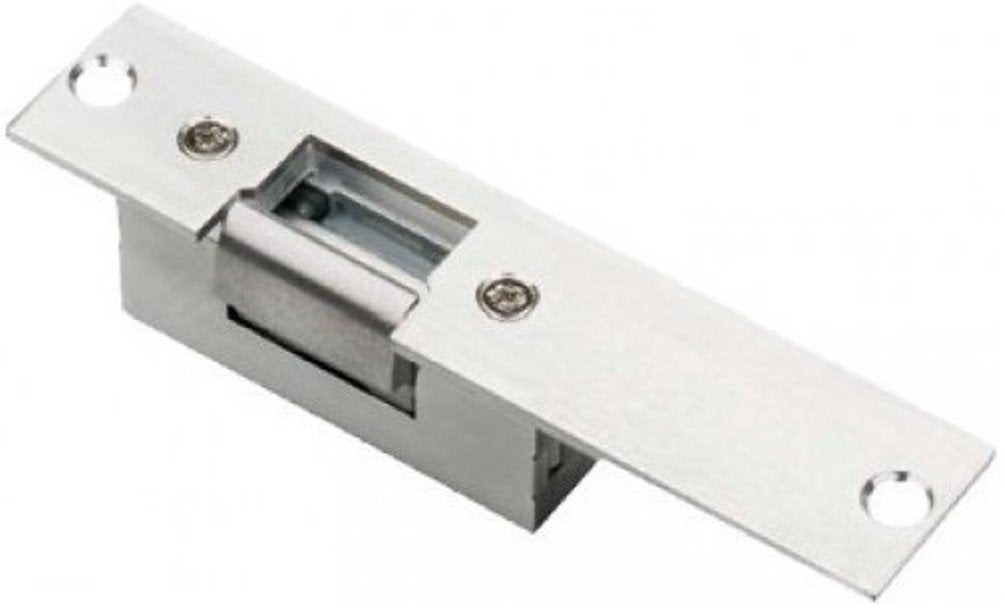

Seco-Larm Enforcer Reversible Electric Door Strike, Asymmetric (SD-994A-A1AQ)

Brand: Seco-Larm

Features:

• Compatible with any cylindrical-door locking system
• Reversible faceplate for right- or left-hand doors
• Fail-secure operation (locks if power is lost)
• Miniature lock body for easier installation
• Type: Asymmetric (off-center strike portion)

model number: SD-994A-A1AQ

Part Number: SD-994A-A1AQ

Details: Available in both asymmetric and symmetric models, the Seco-Larm Enforcer Reversible Electric Door Strike offers an ideal solution for converting a wooden door’s cylindrical lockset into an electronic access control system. It allows the door to be locked/unlocked either manually or through an access control/security system. Built for reliable security, the door strike features 1,000 pounds (453kg) of locking jaw strength. Compatible with any cylindrical-door locking system Reversible faceplate for right- or left-hand doors Fail-secure operation (locks if power is lost) Miniature lock body for easier installation
Both models of the Reversible Electric Door Strike have a reversible chrome faceplate to fit either right-hand or left-hand doors. The lock body is miniaturized to facilitate installation, and the case as well as all moving parts are corrosion-resistant for long life. The door strike has been tested to last for at least 500,000 lock/unlock cycles.

Contents
Door Strike (2) Mounting Screws User Manual
NOTE: For use on wooden doors only.

Technical Details

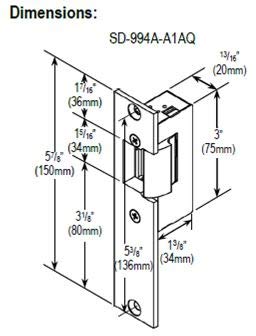

MPN: SD-994A-A1AQ Type: Asymmetric (off-center strike portion) Operation: Fail secure Operating Voltage: 8~16 VAC/12VDC Current Draw: 16VAC: 800mA 12VDC: 750mA Jaw Strength: 1,000 pounds (453kg) Faceplate Size: 5-7/8 x 1-1/4 x 1/8 inches (150 x 32 x 3.2 mm) Keeper Depth: 21/32 inch (16.8mm) Latch Depth: 3/4 inch (19mm) Strike Depth: 1-1/2 inches (38mm) Operating Temperature: 14° to 113°F (-10° to 45°C) Weight: 10.3 ounces (292g) Warranty: 1 Year

EAN: 0676544016410

Package Dimensions: 6.0 x 2.3 x 1.7 inches
