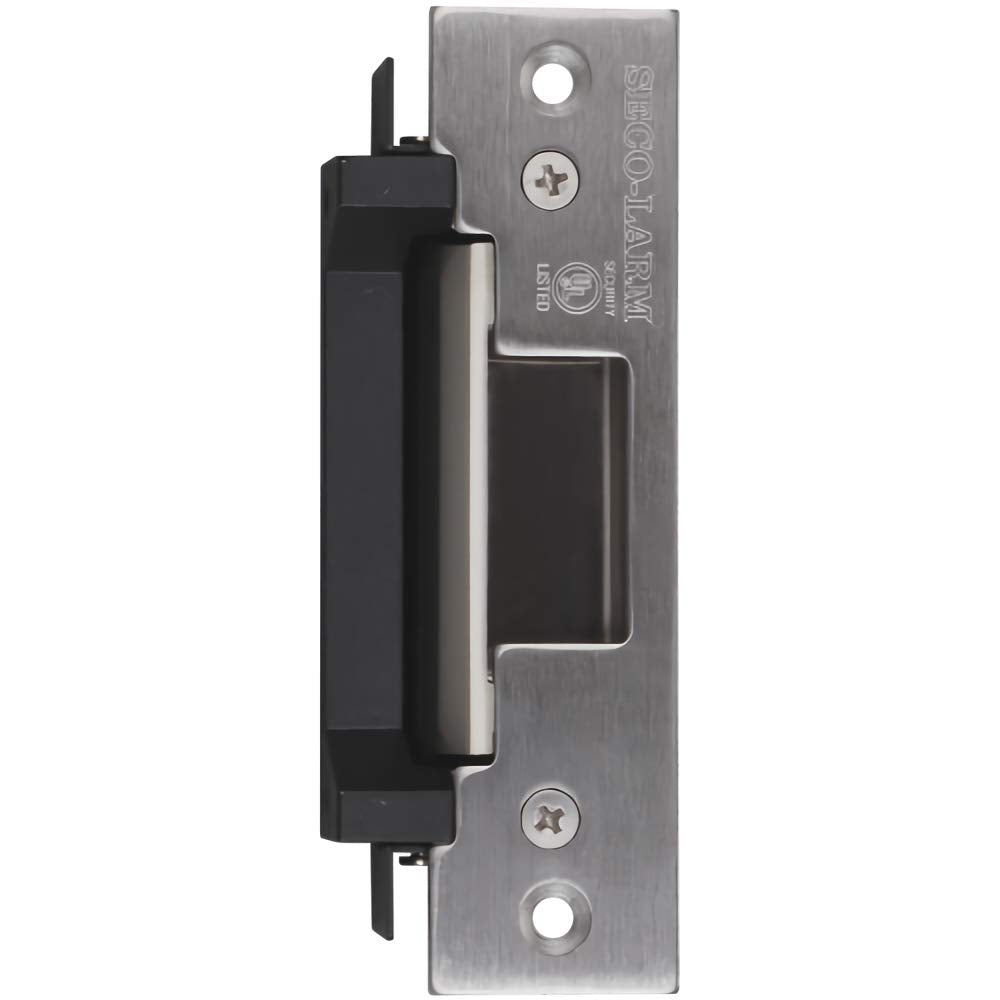

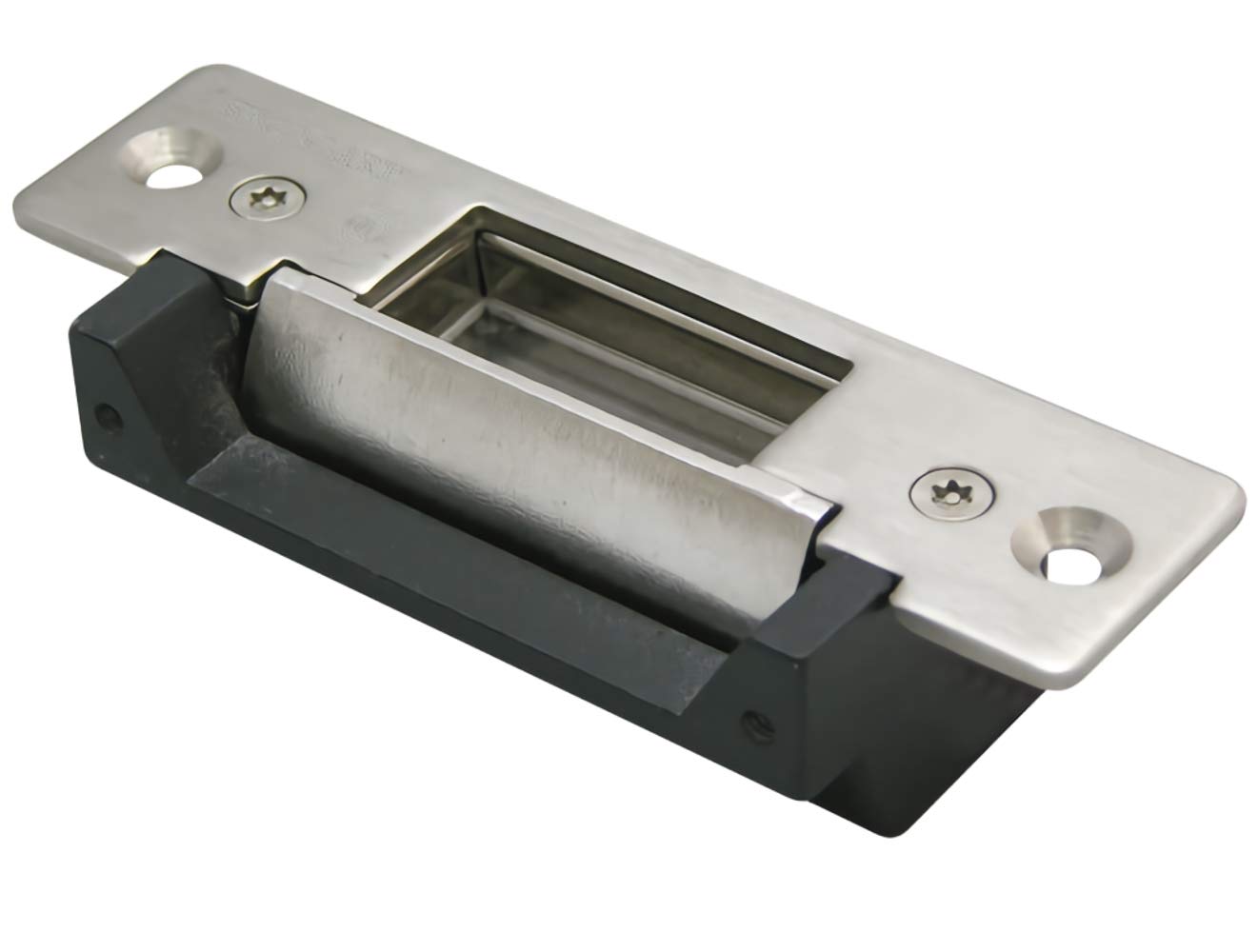

Seco-Larm Enforcer Electric Door Strike for Metal Doors, 24VDC (SD-995C24)

Brand: Seco-Larm

Color: Stainless Steel

Features:

• Converts a cylindrical lockset to an electronic access controlled locking system
• Shallow design for use with most metal doors
• Reversible for right-hand or left-hand doors
• Jaw strength 2,000 pounds
• Current draw: 150mA at 24VDC

Binding: Electronics

model number: SD-995C24

Part Number: SD-995C24

Details: The Electric Door Strike from Seco-Larm converts a cylindrical lock set to an electronic access controlled locking system. It is designed for 12 VDC applications. The UL-listed strike is used with metal doors and is field-programmable in just seconds for fail-secure or fail-safe applications.

Features
Field-programmable in just seconds for fail-secure or fail-safe applications. The Enforcer Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system. Can be used on virtually any cylindrical door locking system. Use of an optional digital keypad with the unit assures high security without the need for a key. Easily connects to Seco-Larm’s SK-983A Electronic Keypad. Suitable for office-type applications. ANSI-sized - 4-7/8' x 1-1/4' x 1-1/4' (124 x 32 x 32mm) Symmetrical-sized. Reversible for right-hand or left-hand doors. Shallow design for use with most metal doors. Powered by a solenoid, not a buzzer coil. Jaw strength 2,000 pounds. Stainless steel lip (keeper) for strength and long life. Non-polarized connection. Wires can be reversed. Tested to 1 million cycles. Optional lip-extension bracket available. CE approved.

Technical Details
MPN: SD-995C24 UPC: 676544002895 Type: 12 VDC Applications Current Draw: 150mA at 24VDC UL listed

EAN: 0676544002895

Package Dimensions: 5.9 x 2.4 x 1.7 inches
