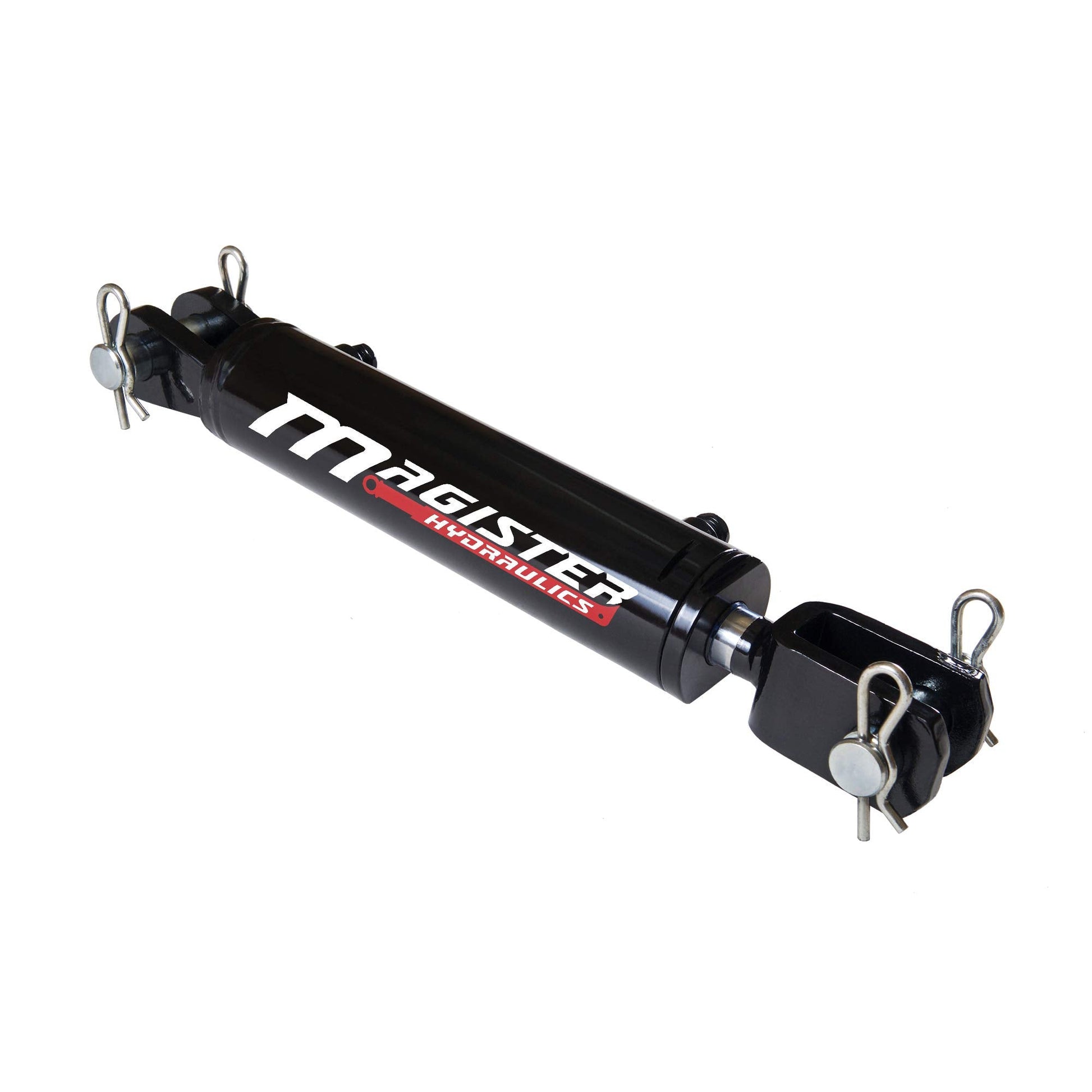

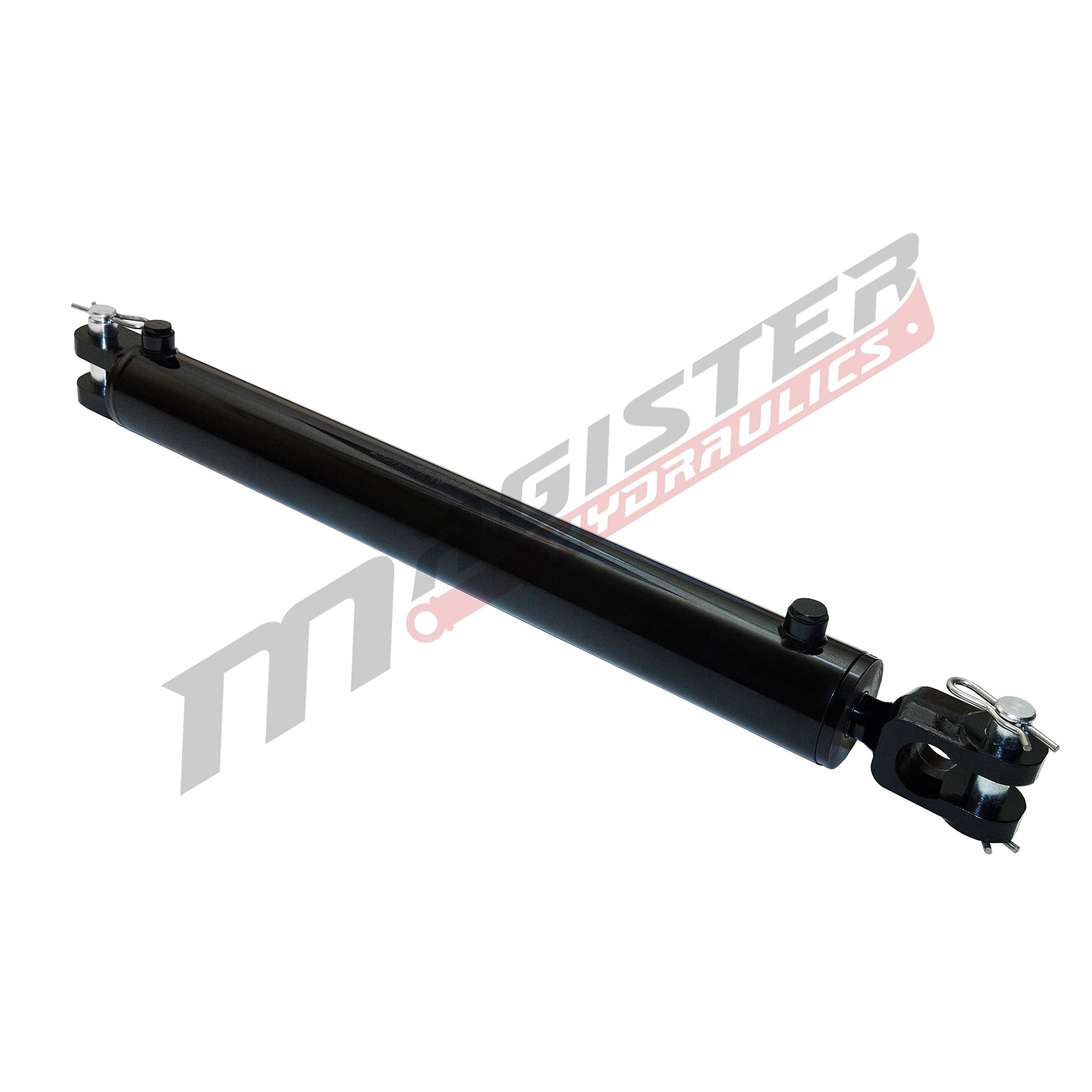

Magister Hydraulics Double Acting Hydraulic Cylinder - AG Clevis Hydraulic Cylinder 2500 PSI tie-Rod Alternative 3.5" bore 18" Stroke (3.5x18)

Brand: Magister Hydraulics

Color: Black

Features:

• WE ARE THE MANUFACTURER - NOT A RESELLER

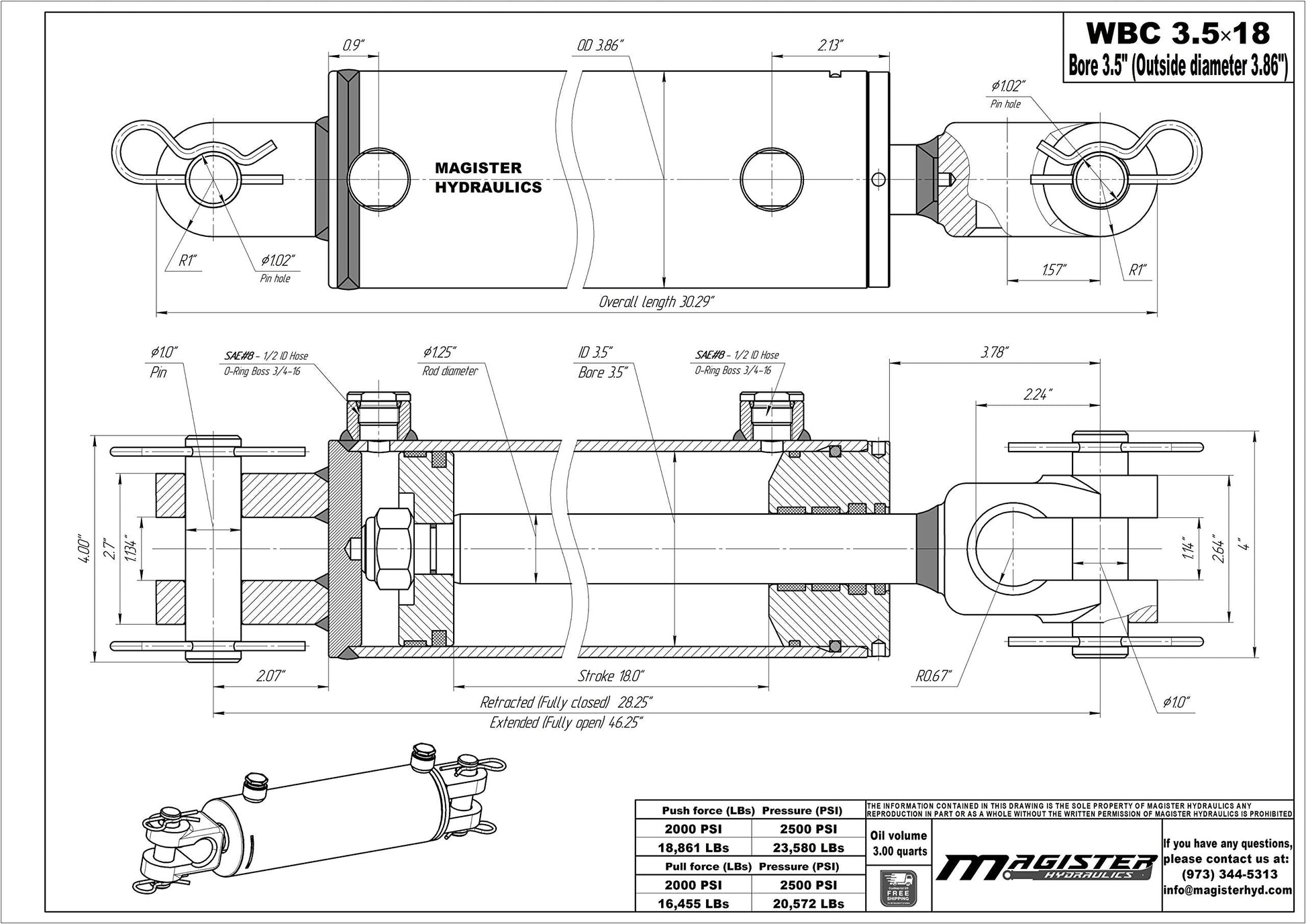

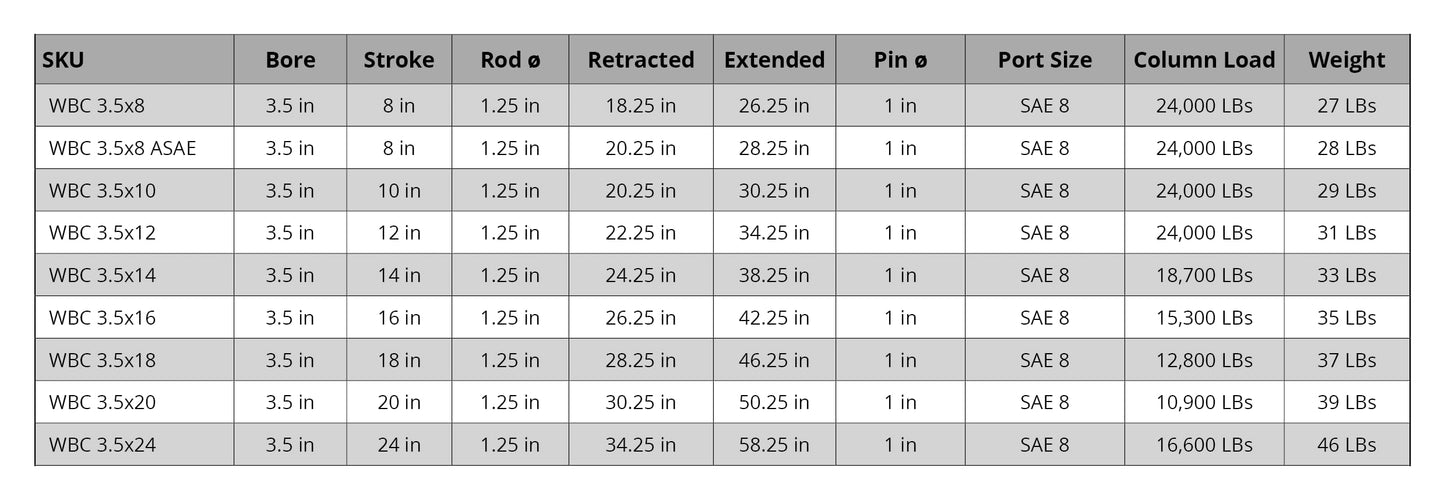

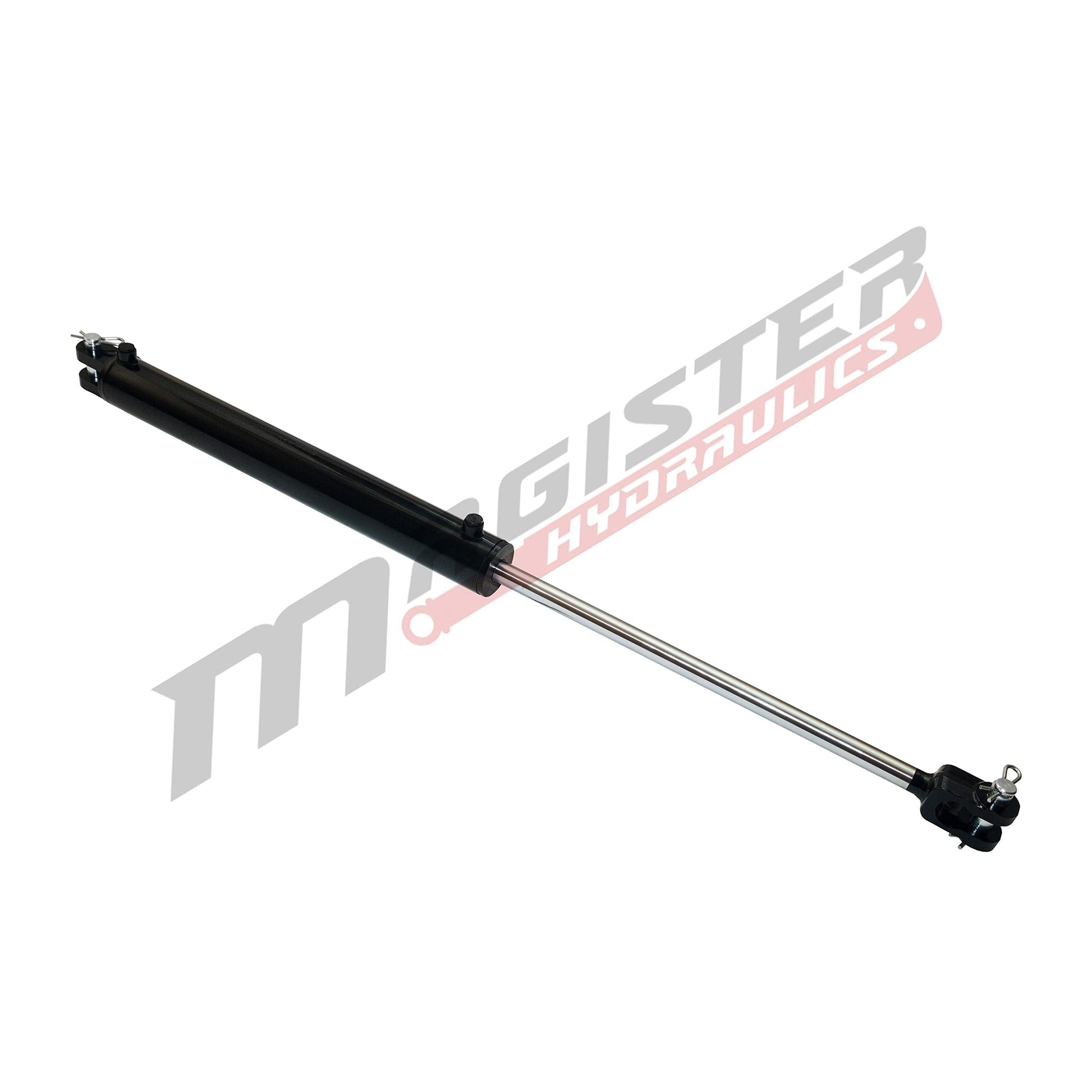

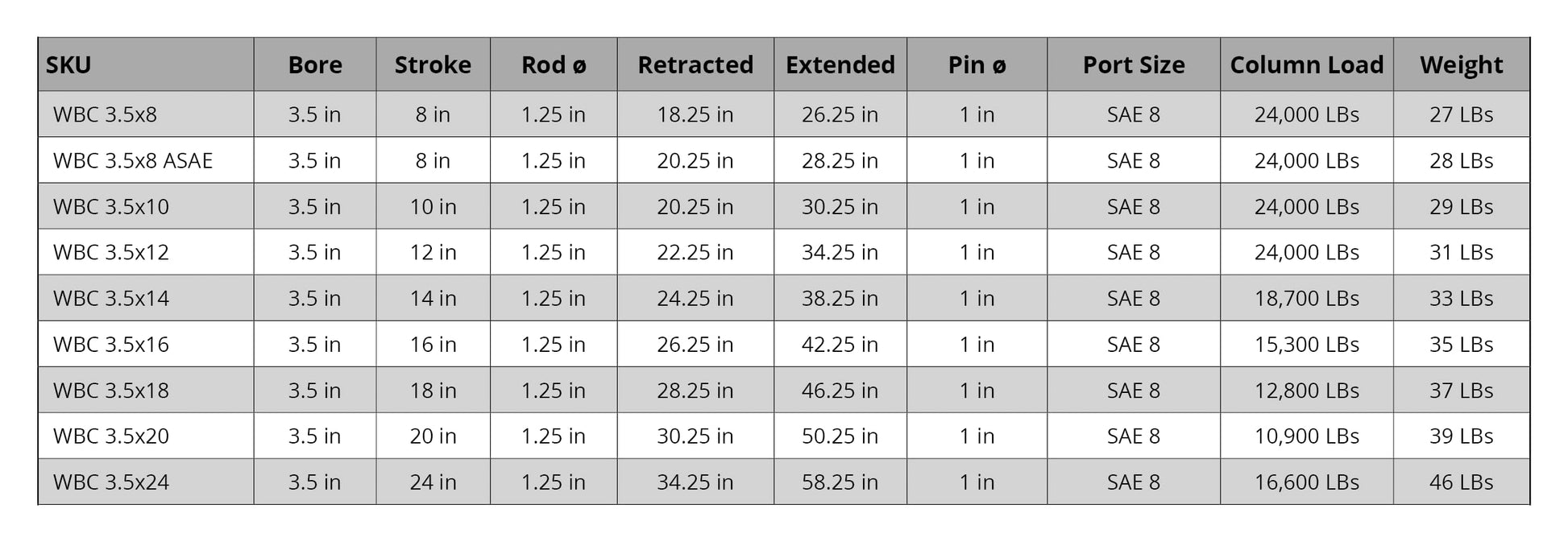

• 3.5' Bore (Outer Dia.: 3.88'), 18' Stroke, 1.25' Rod Dia. Retracted 28.25', Extended 46.25', Welded Hydraulic Cylinder

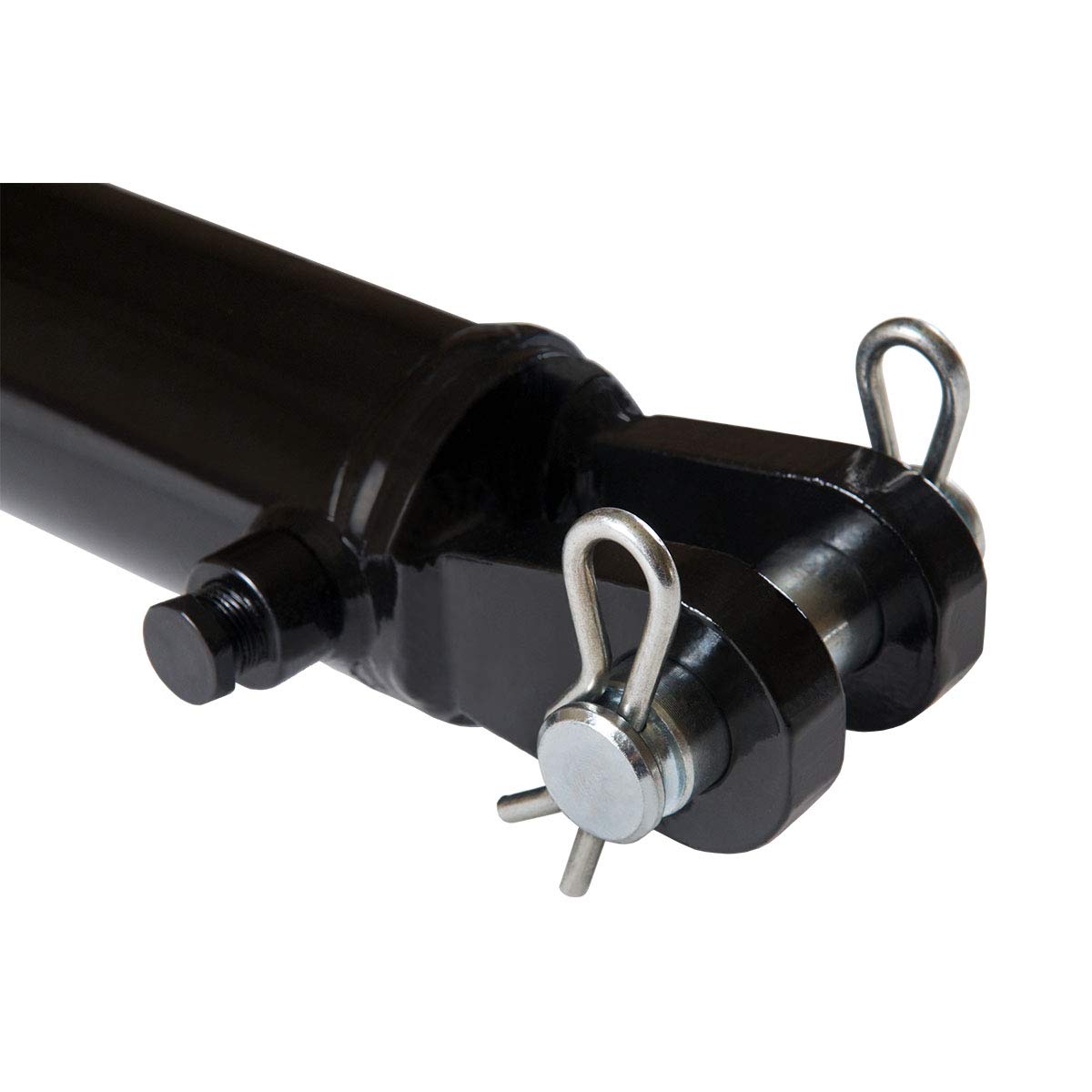

• Universal Hydraulic Cylinder with Clevis Ends, Pin holes 1'. High-quality replacement for tie rod cylinders, designed for farming equipment and a wide range of hydraulic applications.

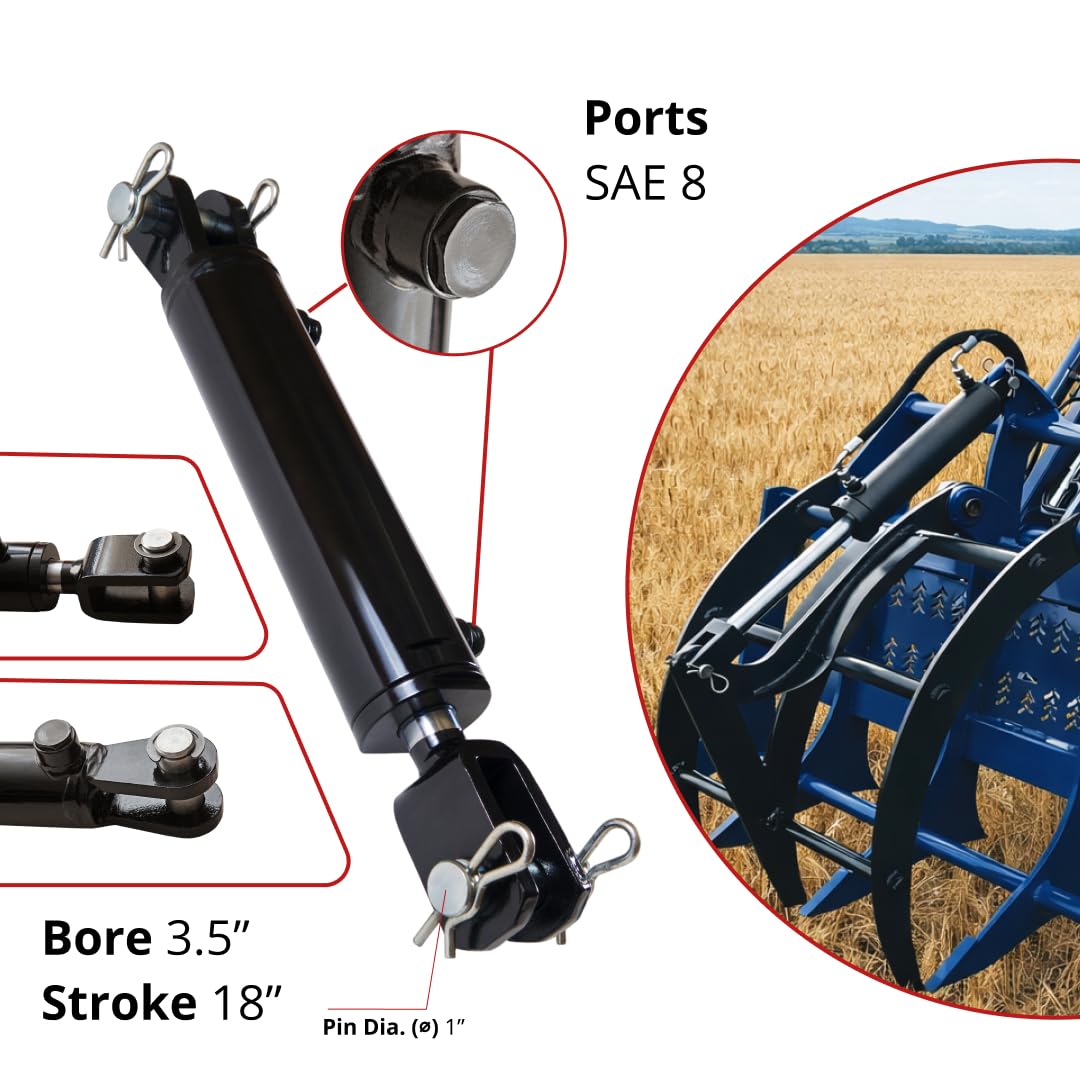

• Rated Pressure 2500 PSI, Column Load 12,800 LBs, Ports SAE 8 (O-ring boss), Double Acting Hydraulic Cylinder
• Magister Hydraulic Cylinder with 2 years Warranty. Made in Europe

model number: 3.5' bore

Part Number: WBC 3.5x18

EAN: 0850016509581
