Hosyond 3pcs I2C IIC 1602 LCD Display Module 16x02 LCD Screen Module for Arduino Raspberry Pi

Brand: Hosyond

Features:

• 1602 LCD screen can display 2 lines x 16 characters, with i2c serial interface, blue display.

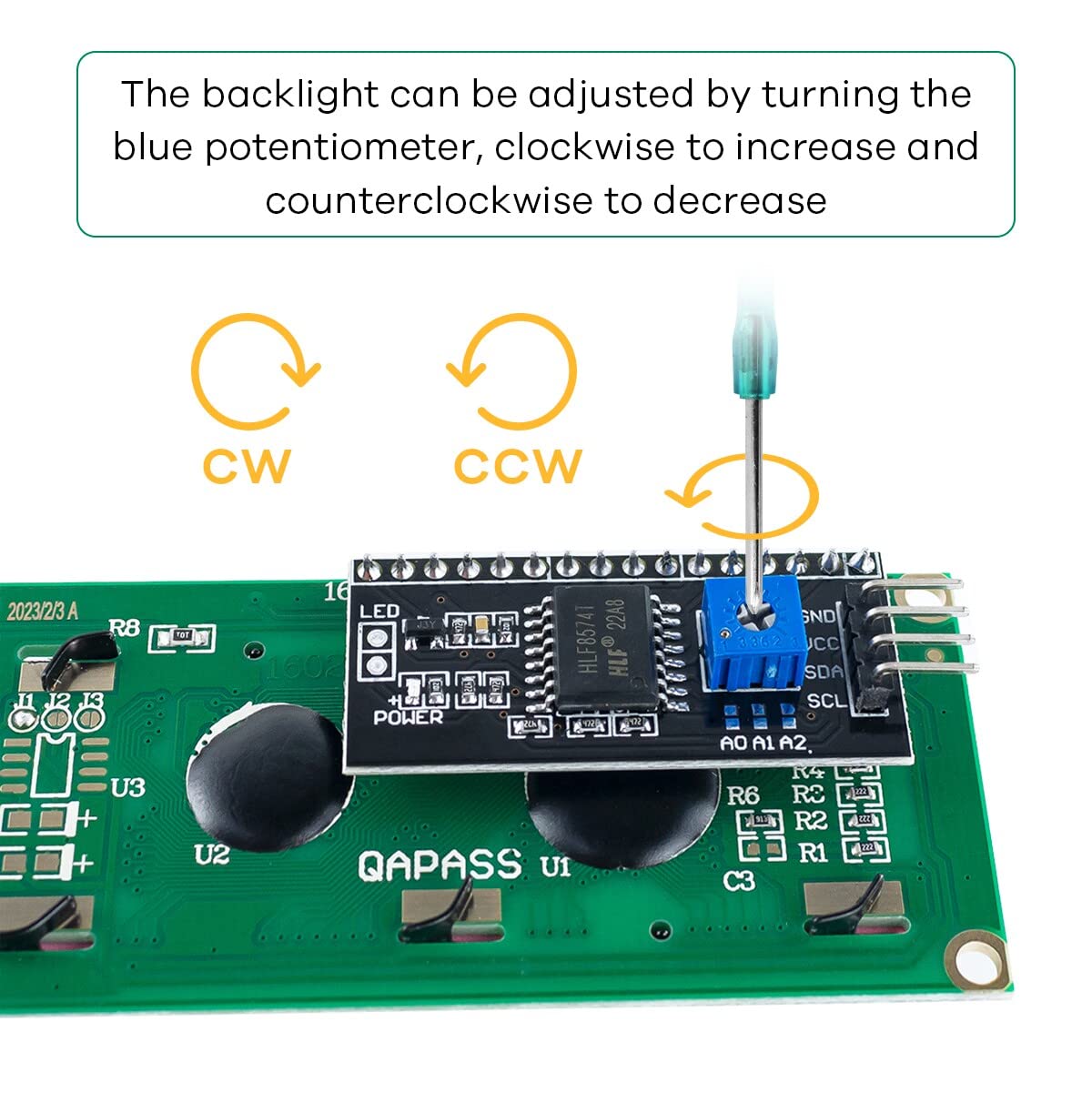

• Built-in independent potentiometer, backlight can be adjusted through the back potentiometer.

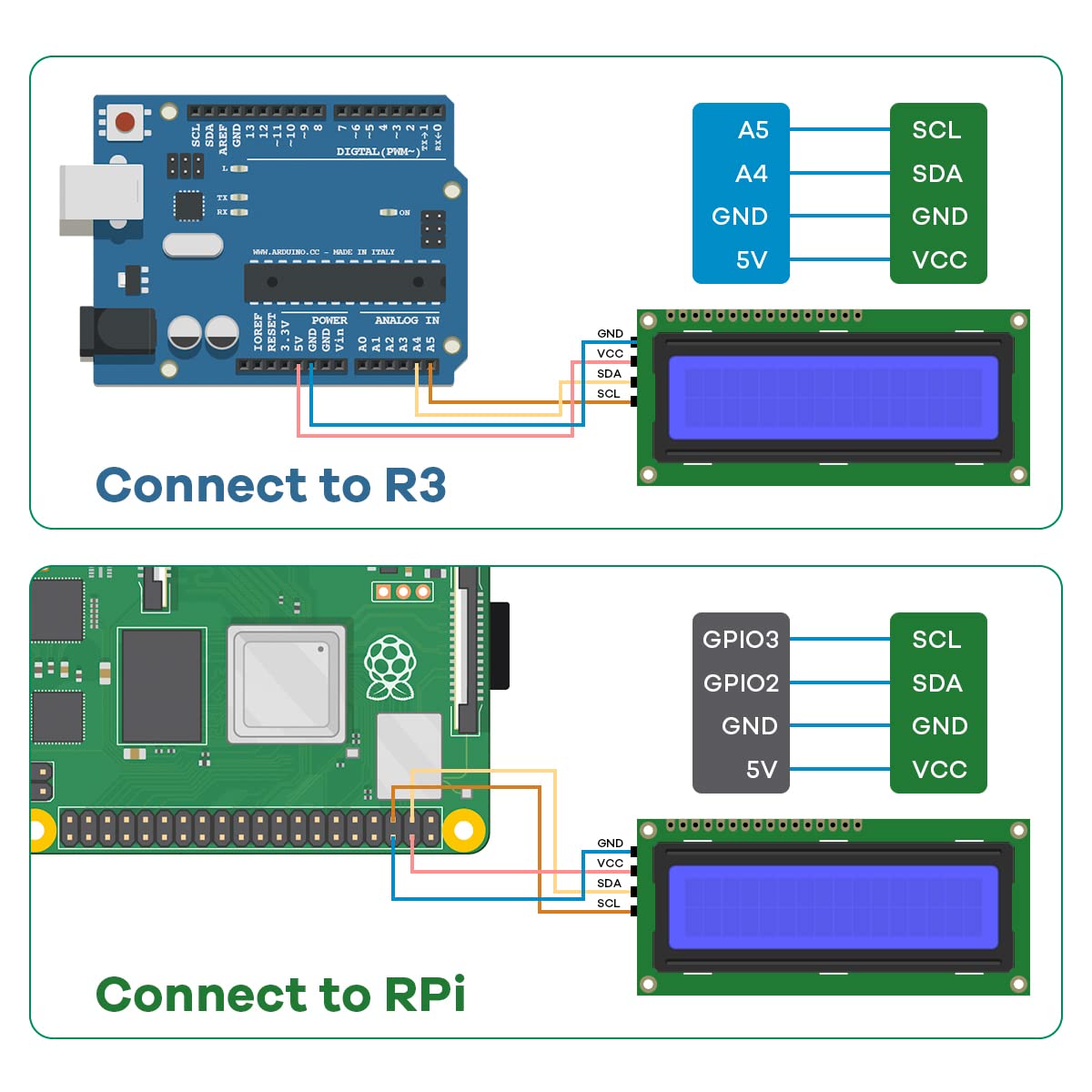

• Power supply: 5v; I2C address: 0x27; wiring method: GND—GND, VCC—VCC, SDA—A4, SCL—A5.
• Compatible with most development boards, such as Arduino, Raspberry pi, Tinkerboard, Nano pi, Banana pi, stm32, etc.
• Widely used in: Internet of Things, school electronics projects, smart buildings, maker DIY projects, etc., can display letters, characters, numbers, real-time clock or temperature.

Binding: Electronics

model number: B003

Part Number: B003

Details: Specifications:
Display: 2-lines x 16-characters
Four Pin Definition: GND, VCC, SDA, SCL
Default I2C bus address: 0 x 27 for F8574T chip
Working voltage: 5V
Adjust Backlight: Potentiometer

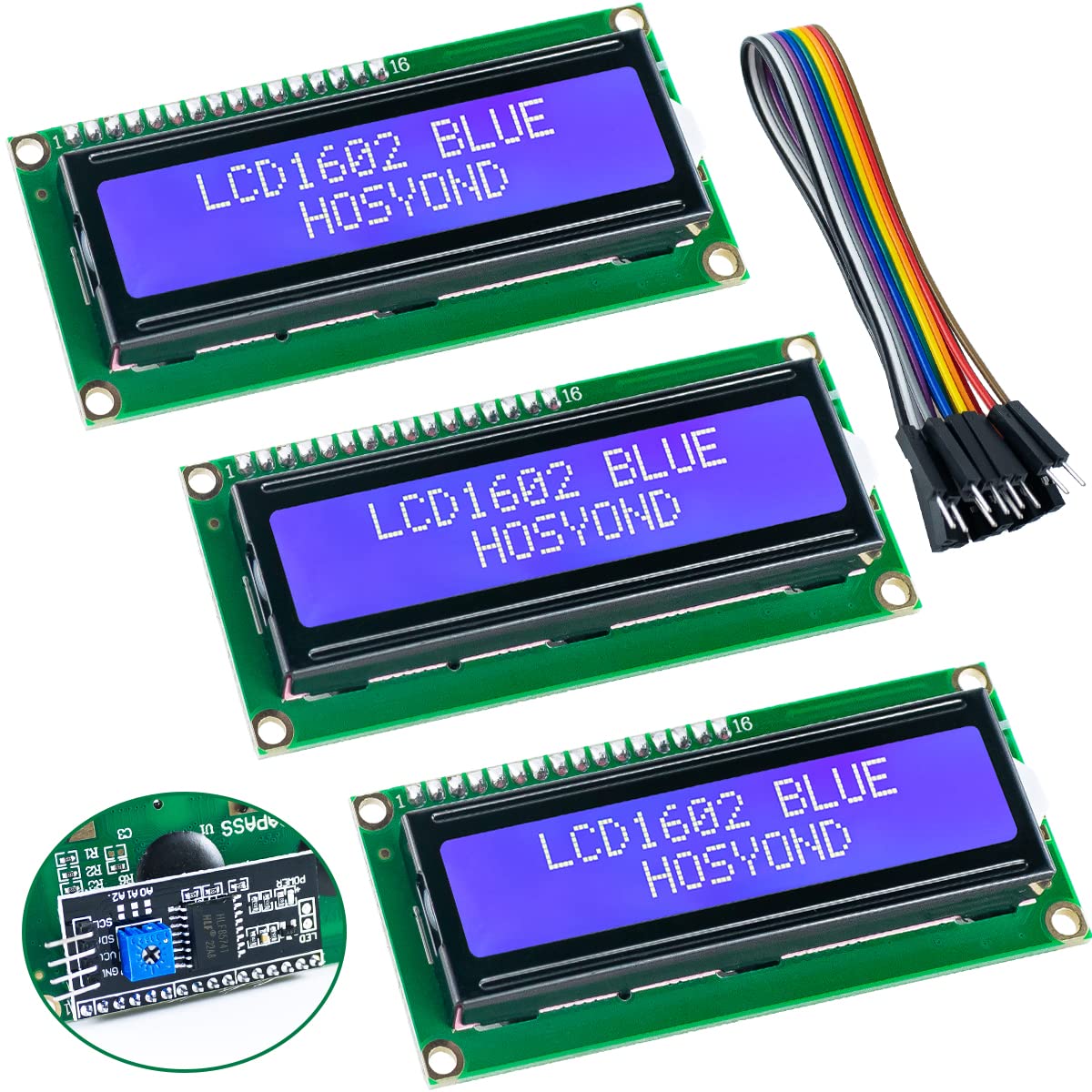

Package includes:
3 x LCD display
1 x 10pin F-M jumper wires

EAN: 0732214748071

Package Dimensions: 5.9 x 4.0 x 1.4 inches
