HES 8000C Complete Pac for Latchbolt Locks, Includes The 801 & 801A faceplates, Satin Stainless Steel (630), Dual Voltage (12/24 VDC/VAC) (1)

Brand: HES Hardware - Assa Abloy

Color: Satin Stainless Steel (630)

Features:

• The 8000C is designed for easy installation with no cutting on the frame required.
• Concealed design, Vertical adjustability, and works with cylindrical locksets with a 5/8' throw latchbolt.

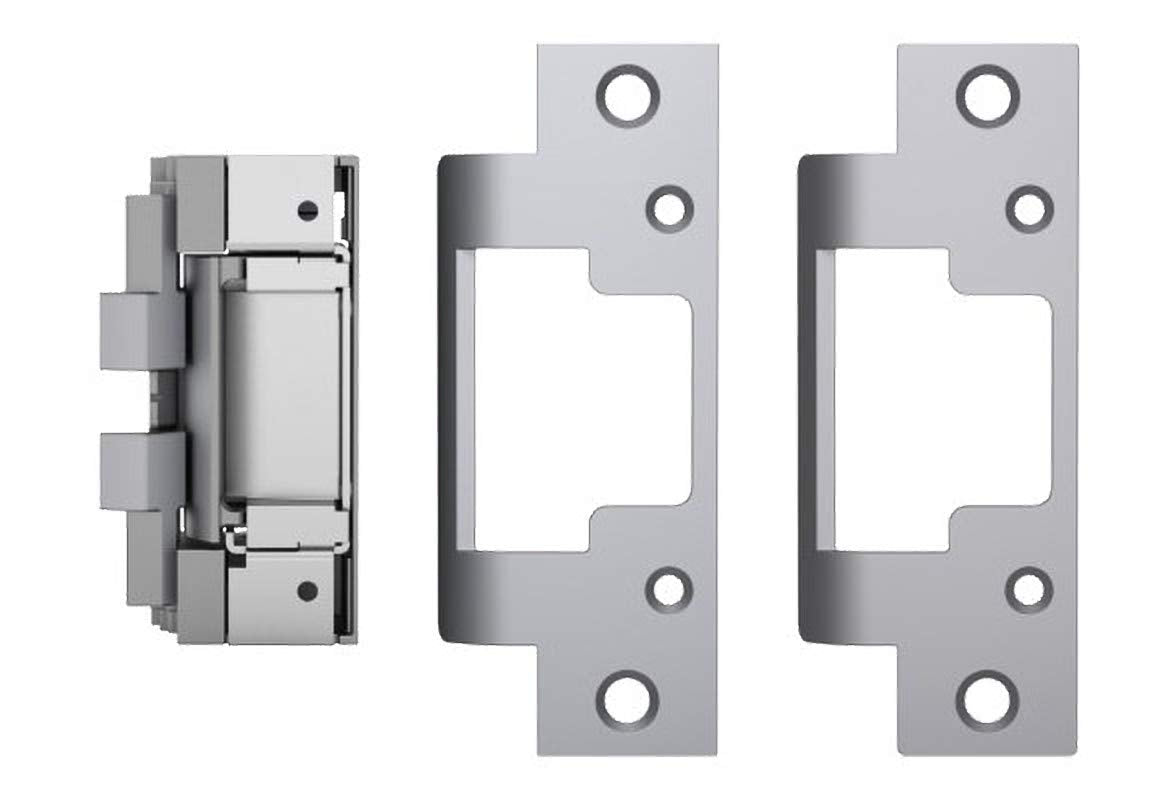

• HES 8000C includes an 8000 strike body, the 801 faceplate for cylindrical locksets in ANSI metal jambs and the 801A faceplate for cylindrical locksets or spring latches in aluminum frames.
• SecuriCare five-year, no fault, no questions asked warranty.
• Tested & Certified.

Binding: Tools & Home Improvement

model number: HES 8000C-12/24D-630

Part Number: HES 8000C-12/24D-630

Details: The 8000 series is a compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. NO cutting on the frame is required.

This 8000C (Complete Pac) works with cylindrical locksets with a 5/8' throw latchbolt and includes the 801 & 801A faceplates.

SPECIFICATIONS:• Non-handed Internally mounted solenoid Accommodates 1/2' – 5/8' cylindrical latchbolt (5/8' with 1/8' door gap) •Strike body depth 1-1/16' Strike body width 1-7/16'. •FRAME APPLICATION: Metal/Wood
FACEPLATE OPTIONS Included (4-7/8' x 1-1/4'):•801 = For use with cylindrical locksets in ANSI metal jambs, with latchbolts up to 5/8' throw. •801A (radius corners & flat faceplate) = For use with cylindrical locksets, with latchbolts up to 5/8' throw. Includes universal mounting tabs. Aluminum frames.
COLOR: 630 Satin Stainless Steel.

INSTALLATION:NO cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware.

FEATURES:•Completely concealed, requires no cutting - Accommodates door sag with patented vertical adjustability Superior Aesthetics - Fits in standard ANSI prep Quality and Flexibility. •Tamper-resistant, •Static strength 1,500 lbs Dynamic strength 70 ft-lbs Endurance 1 million cycles Field selectable fail secure/fail safe

CERTIFICATIONS:•ANSI/BHMA A156.31 Grade 1, •UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 (6th Edition) listed, •PoE friendly RoHS compliant.
ELECTRICAL (DC Continuous Duty): Dual voltage 240 mA at 12 VDC/120 mA at 24 VDC

WARRANTY:SecuriCare 5-year, no fault, no questions asked.

EAN: 0736530883690

Package Dimensions: 10.4 x 3.3 x 2.2 inches
