HES 5200C-12/24D-630 Universal Door Electric Strike with Faceplate, Satin Stainless Steel, Static Strength 1500 lbs., Dynamic Strength 70 ft-lbs., Dual-Voltage 12 or 24 VDC/VAC

Brand: HES Hardware - Assa Abloy

Color: Satin Stainless Steel (630)

Features:

• Tamper-resistant, Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs., Endurance 500,000 cycles
• In-frame horizontal adjustment, Non-handed
• Accommodates 5/8' - 3/4' latchbolt (3/4' with 1/8' door gap)
• Strike body depth 1-3/16', Plug-in connector

Binding: Tools & Home Improvement

model number: HES 5200C-12/24D-630

Part Number: HES 5200C-12/24D-630

Details: HES 5200C-12/24D-630 Universal Door Electric Strike With Faceplate, Satin Stainless Steel, Static Strength 1500 lbs., Dynamic Strength 70 ft-lbs., Dual-voltage 12 or 24 VDC/VAC

Key Features
- Tamper-resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/fail safe
- Dual-voltage 12 or 24 VDC/VAC
- In-frame horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8' - 3/4' latchbolt (3/4' with 1/8' door gap)
- Strike body depth 1-3/16'
- Plug-in connector

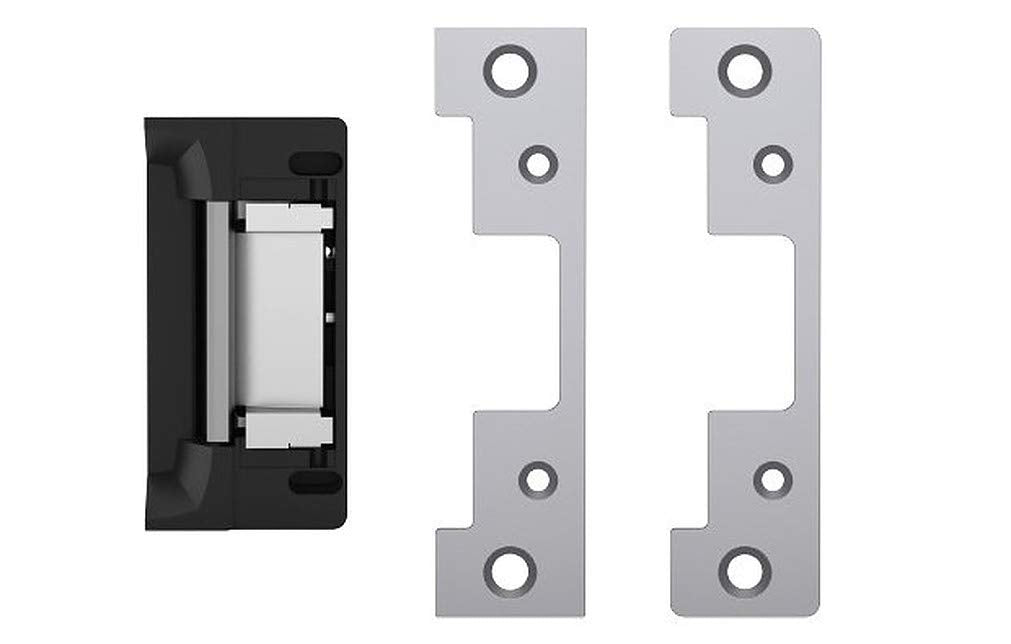

- Trim enhancer included

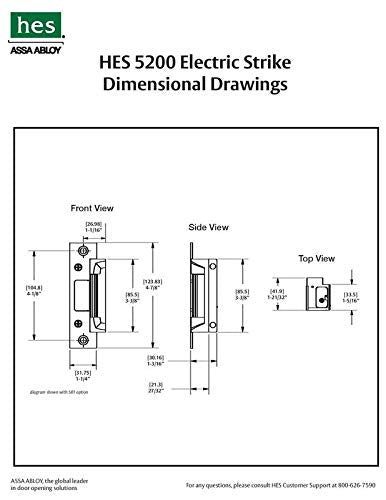

- 1.1875' Strike Body Depth
- 4.87' Strike Body Height
- 1.25' Strike Body Width

EAN: 0736530884451

Package Dimensions: 10.4 x 3.3 x 2.2 inches
