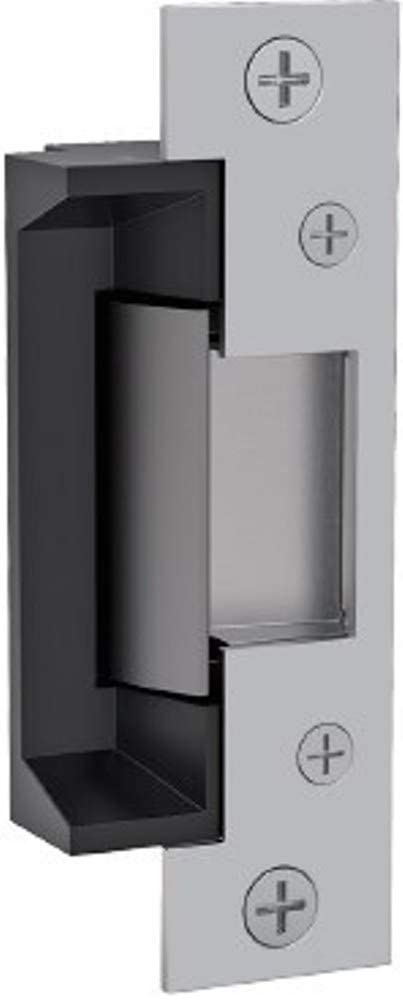

HES 5000C-12/24D-630 Series 5000C Universal Electric Strike Complete Pac for Latchbolt Locks, Satin Stainless Steel, Dual Voltage 12/24 VDC/VAC, Includes the 501 and 501A Faceplates

Brand: HES Hardware - Assa Abloy

Color: Satin Stainless Steel (630)

Features:

• Static strength 1,500 lbs, Dynamic strength 70 ft-lbs
• Endurance 1 million cycles, Field selectable fail secure/fail safe
• In-frame horizontal adjustment, Internally mounted solenoid
• Accommodates 1/2' – 5/8' latchbolt (5/8' with 1/8' door gap)
• Strike body depth 1-3/16', Dual voltage 12/24 VDC/VAC

Binding: Tools & Home Improvement

model number: 5000C-12/24D-630

Part Number: HES 5000C-12/24D-630 (500030403)

Details: HES 5000C-12/24D-630 Series 5000C Universal Electric Strike Complete Pac for Latchbolt Locks, Satin Stainless Steel, Dual Voltage 12/24 VDC/VAC, Includes the 501 and 501A Faceplates

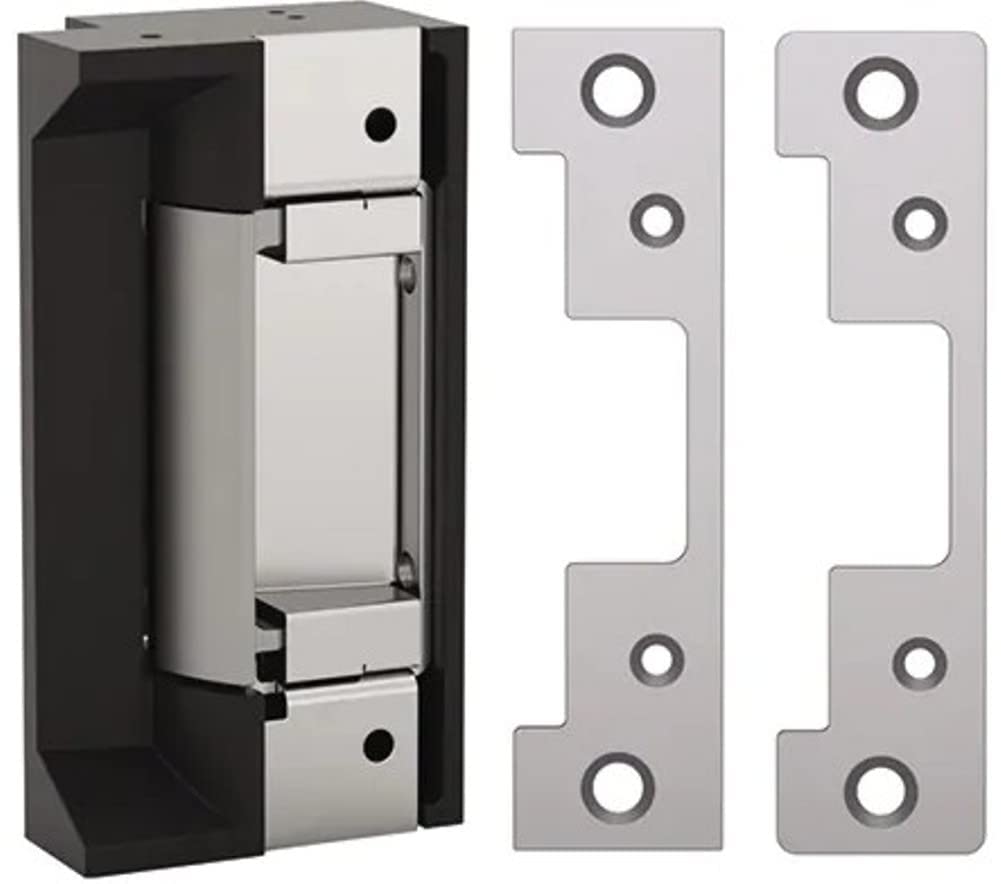

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8' throw. Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5000C includes a 5000 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.

Key Features
- Tamper-resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail secure/fail safe
- In-frame horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2' – 5/8' latchbolt (5/8' with 1/8' door gap)
- Strike body depth 1-3/16'
- Dual voltage 12/24 VDC/VAC
- Includes the 501 and 501A faceplates

EAN: 0736530883638

Package Dimensions: 10.5 x 3.4 x 2.2 inches
