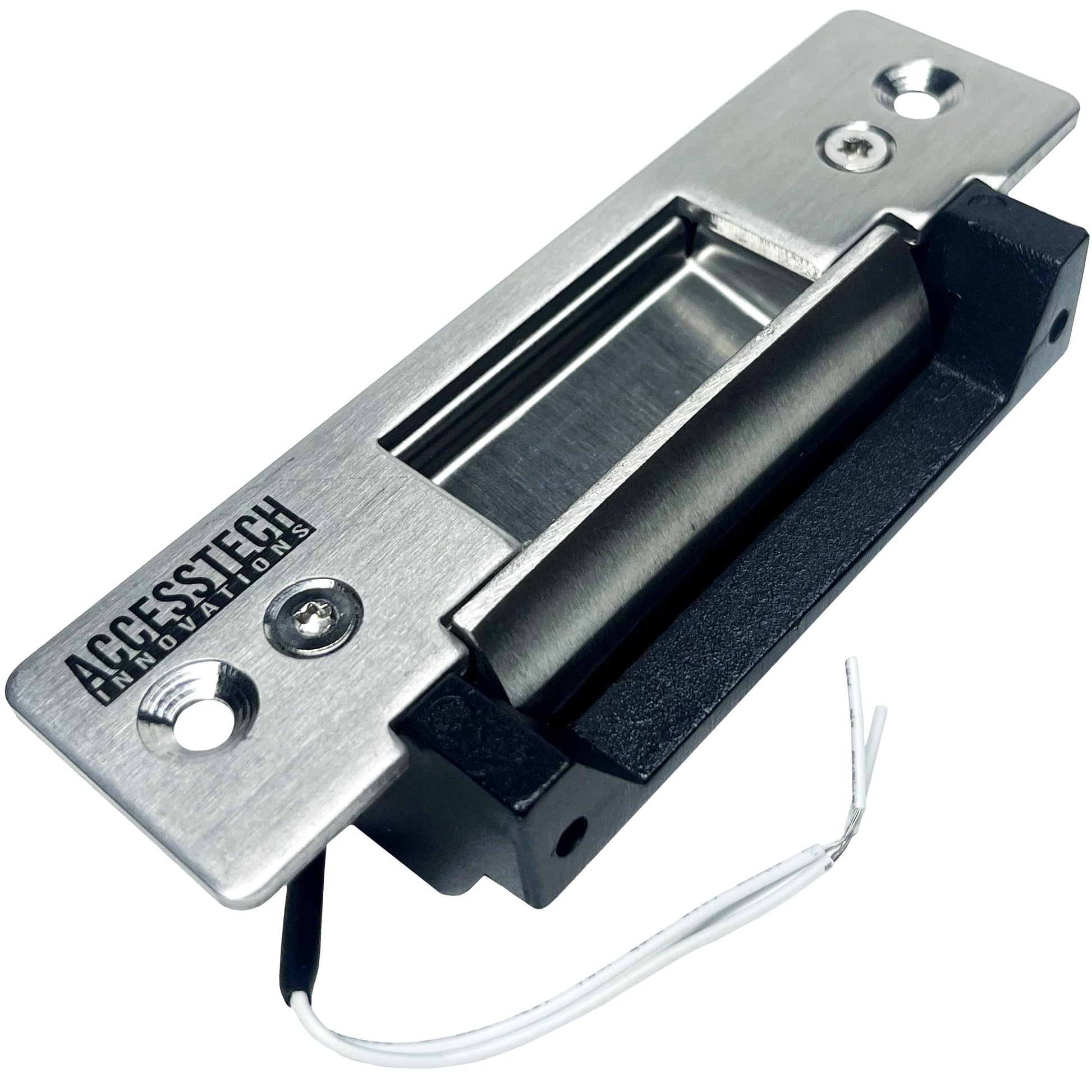

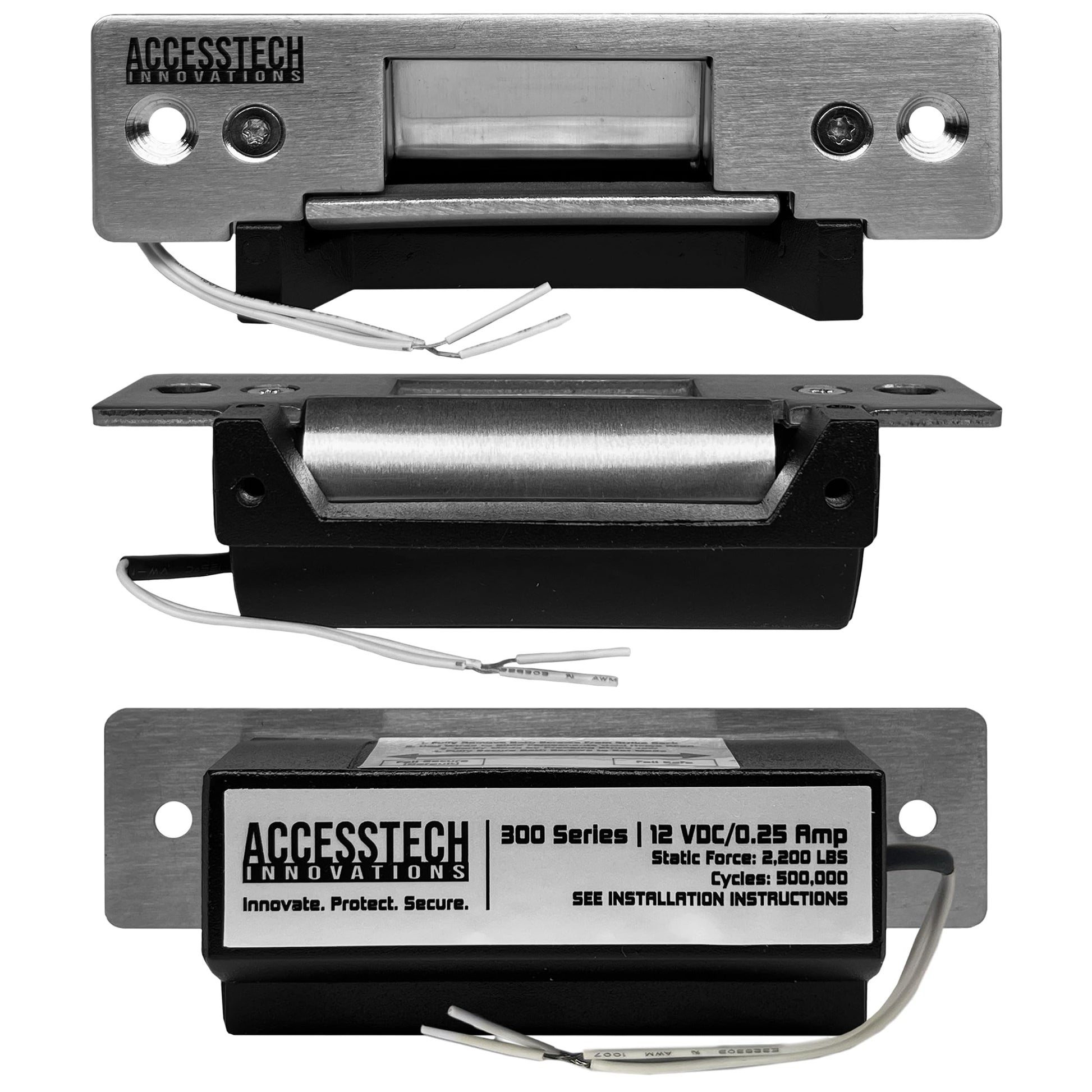

Heavy Duty Electric Strike Door Lock ANSI Standard Access Control System | 2,200+ LBS | Fail-Secure/Fail-Safe Adjustable | 12VDC Input Voltage | AccessTech Innovations | Model: 300

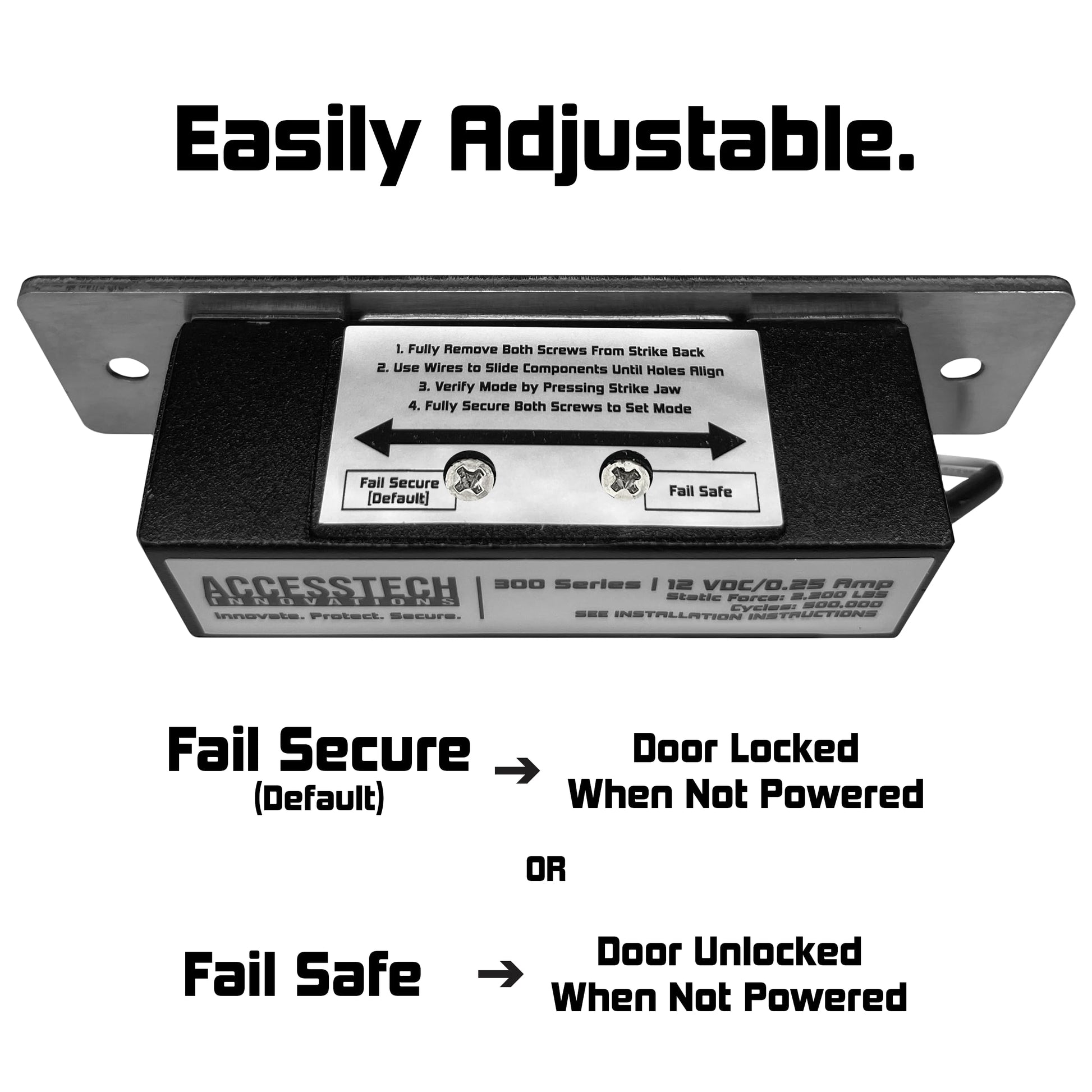

FAIL-SECURE / FAIL-SAFE ADJUSTABLE: Lock can be switched between both modes by adjusting a screw. Fail Secure (Default) means device is Locked when Unpowered, Fail Safe means device is Unlocked when Unpowered.

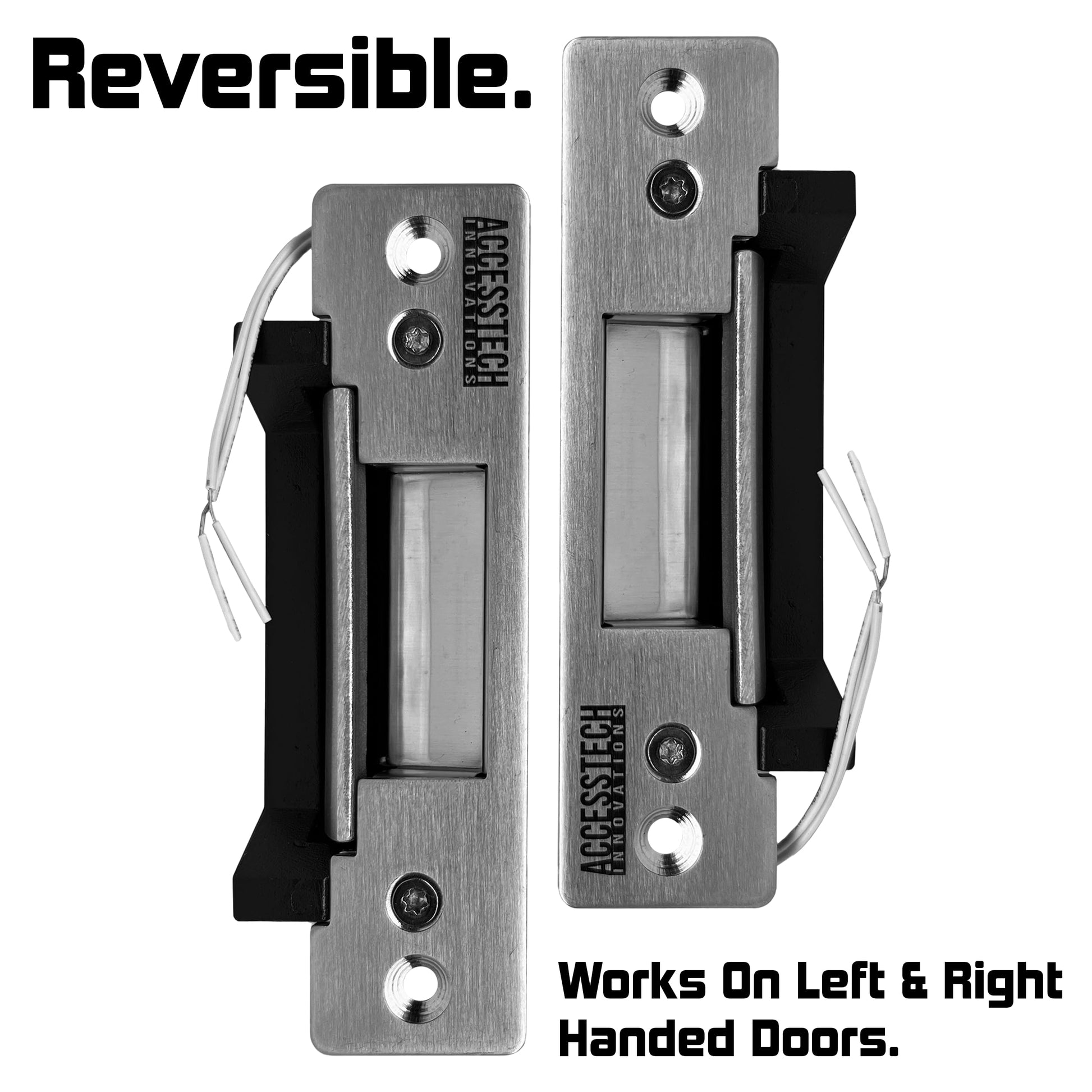

LEFT & RIGHT HANDED DOORS: Can be installed to work with doors that have their handle on their left side in addition to doors with the handle on the right.
ACCESS CONTROL: Electric door strike can convert cylindrical lock sets into an electronic access controlled locking system.
STRONG & DURABLE: Jaw Strength rated at 2,200 Lbs and cycle tested up to 500,000 times.

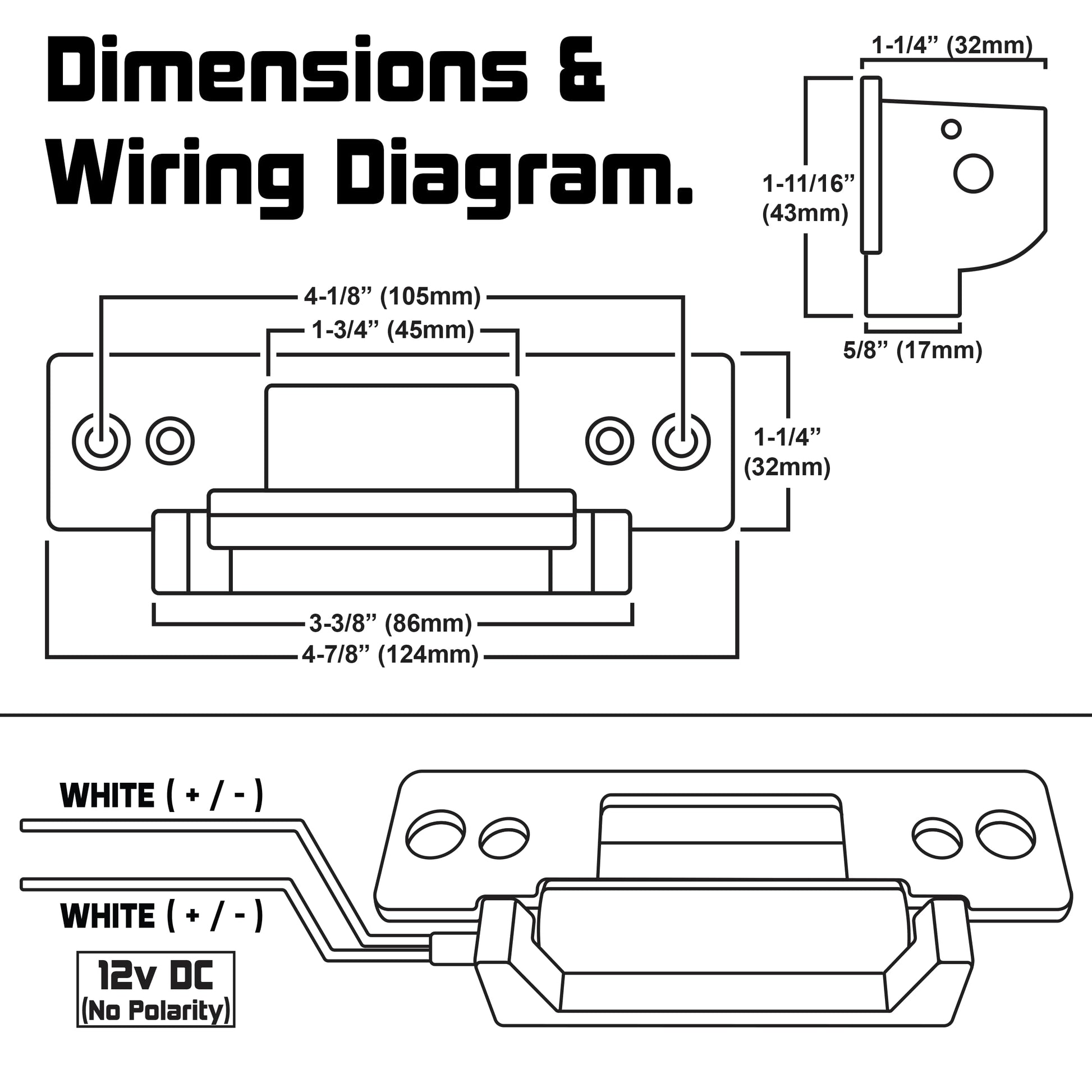

VOLTAGE & DIMENSIONS: 12 Volt DC Input @ 250mA | Overall Size (LxWxH) 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm) – LatchBolt sizes up to 5/8”

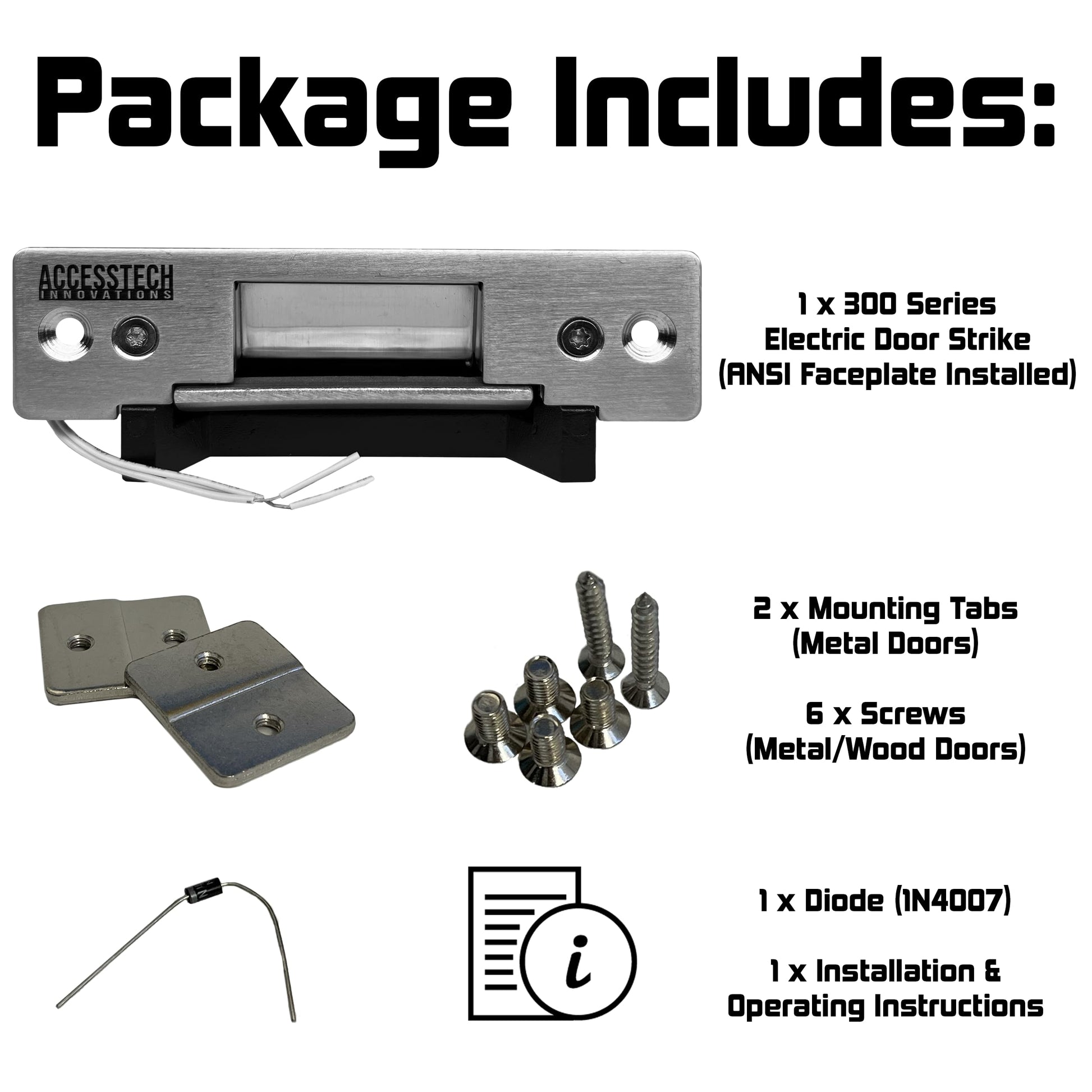

PACKAGE CONTENTS: 1 x Electric Door Strike Device | 2 x Mounting Tabs | 6 x Screws | 1 x Diode | 1 x User Manual
