Electric Door Strike Lock ANSI Standard Heavy Duty Fail-Secure/Fail-Safe Adjustable 12V DC for Door Access Control System Cylindrical Locksets Silver

Brand: YUANWIN

Color: Silver

Features:

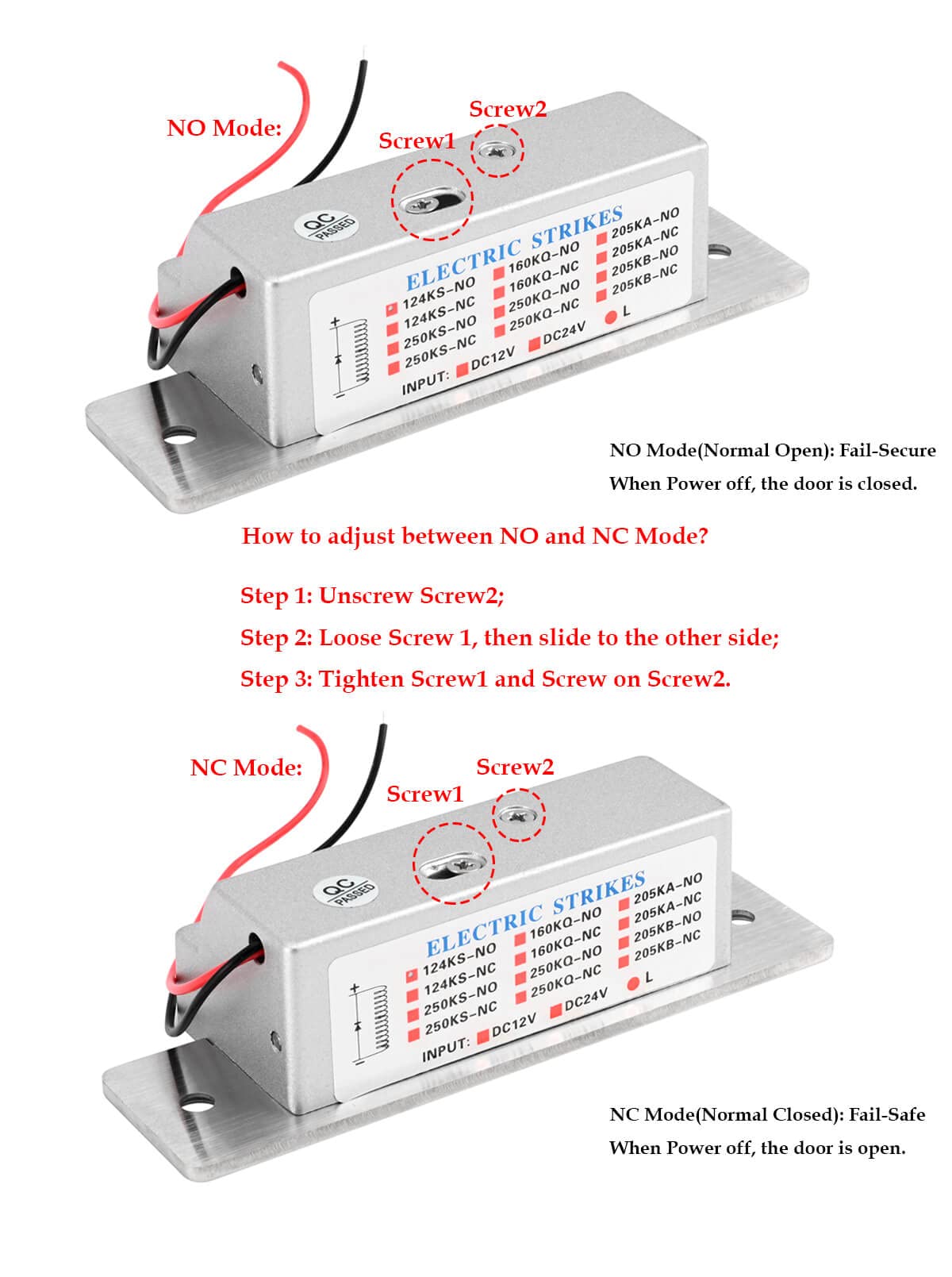

• This Electric Door Strike Lock provides fail-safe (NC Mode) and fail-secure (NO Mode) modes, it's easy to adjust between 2 modes
• 2,200 LBS (1000kg) Jaw strength, Tested to 500,000 cycles
• Complete mounting hardware included, Screw terminals for ease of wiring
• This Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system
• Attention: Before placing order, please check the size of door's frame to avoid wrong purchase

model number: 769894489888

Part Number: 769894489888

Details: Electric Door Strike Lock ANSI Standard Heavy Duty Fail-Secure/Fail-Safe Adjustable for Door Access Control System Cylindrical Locksets

Advantage:
Converts cylindrical locusts into an electronic access-controlled locking system

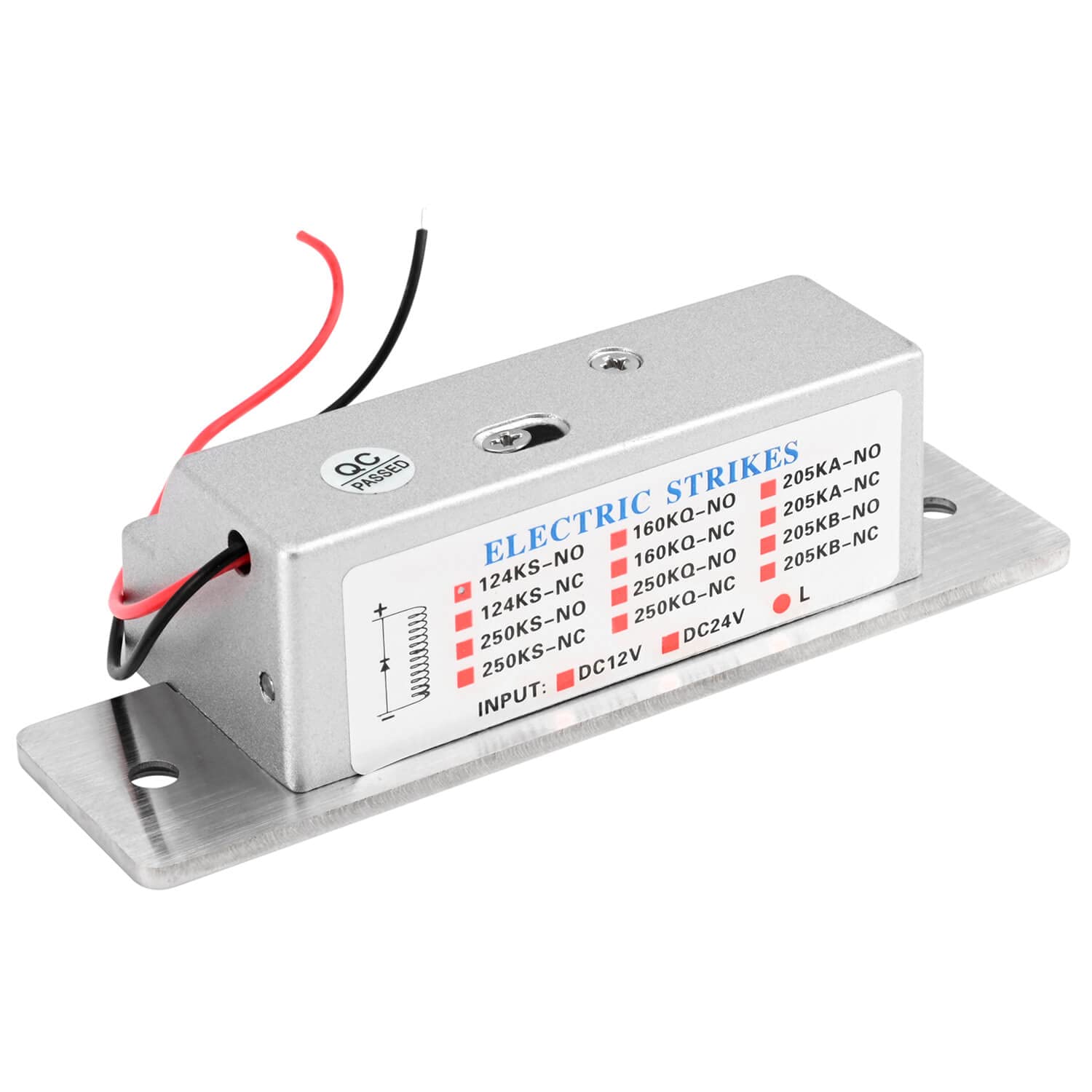

Field-selectable for fail-safe or fail-secure operation on the back
Can be used with virtually any cylindrical door locking system
Reversible non-handed design fits either right hand or left-handed doors
Shallow design for use with most metal doors
Stainless-steel keeper for strength and long life
Door indoor use only
Special design, easy to adjust the distance of the Lock-tongue
Testing to 1000000 cycles
High-Temperature Painted, Durable and Beautiful Article
Designed for Metal Frame drill a hole, and then install it directly

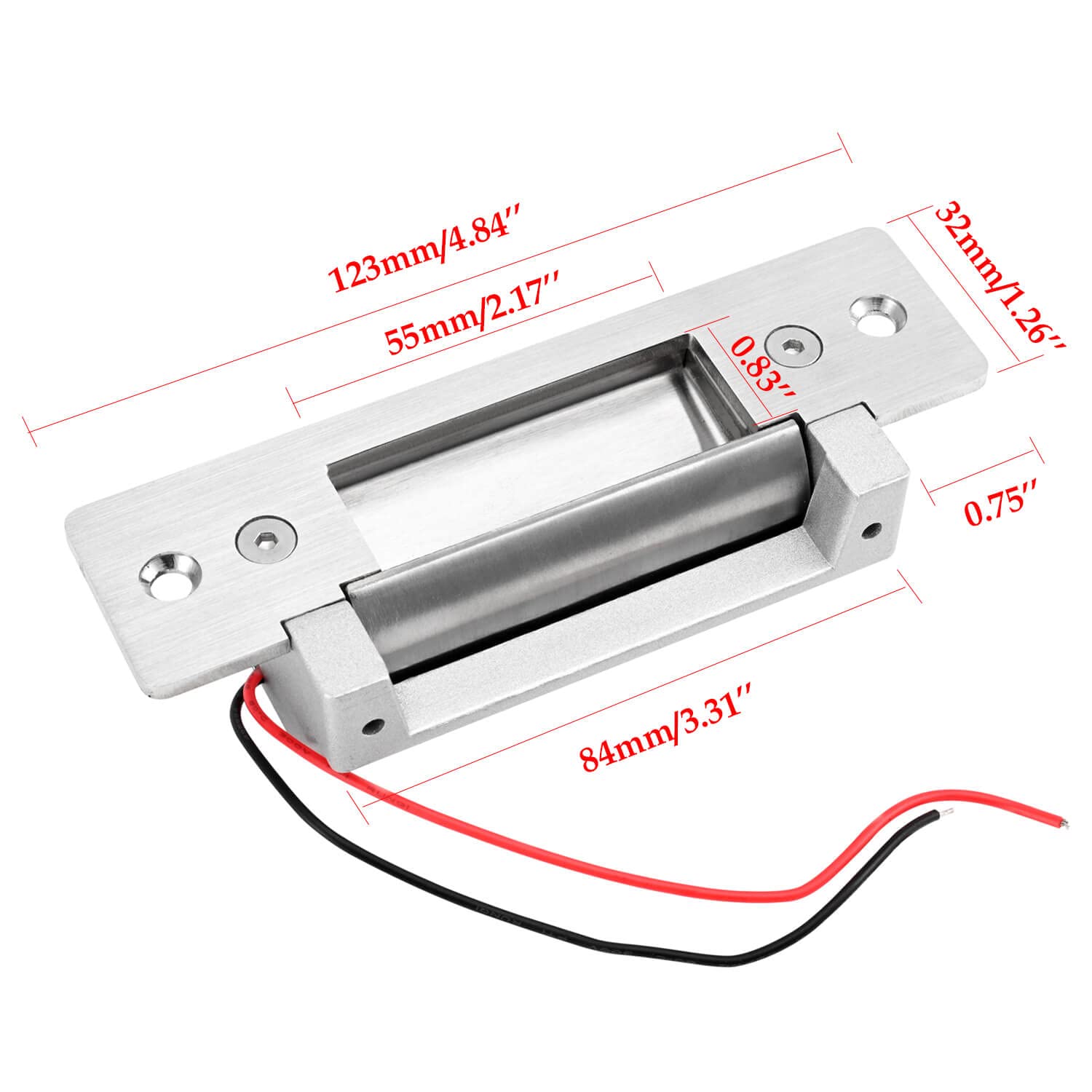

Specifications:
Input Voltage: 12VDC; Current: 240mA
Faceplate Size (L x W): 4.88' x 1.26' / 124x32mm
Case Size: 0.98' x 3.35' x 1.14' deep [25mm x 85mm x 29mm deep]
Strike Opening: 0.77' x 2.13' [19.5mm x 54mm]
Holding Force: 1000kg / 2200LBS
Face plate Housing: Painted Steel
Weight: 0.40kg / 0.89lb

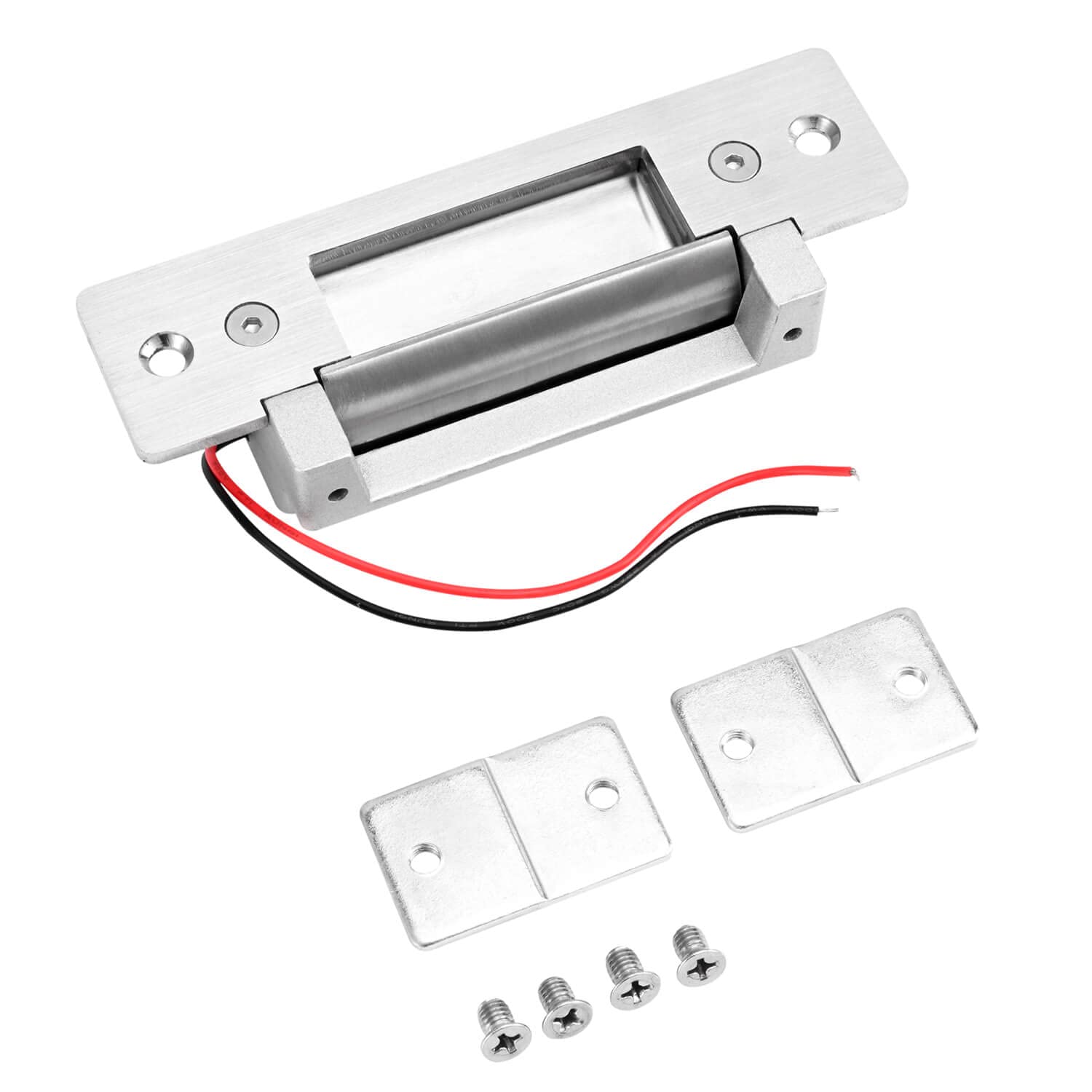

Package includes:
1 x Electric Door Strike Lock
4 x Mounting Tabs
4 x Screw
1 x Manual

Note: Strike lock needs work with cylindrical lockset which needs to buy separately.

EAN: 0769894489888

Package Dimensions: 7.4 x 2.1 x 1.7 inches
