JKBMS Inverter BMS 8S-16S 24V-48V 100A – V19 Home Energy Storage BMS with UART for New Display, 1A Active Balance, Built-i...

About this item

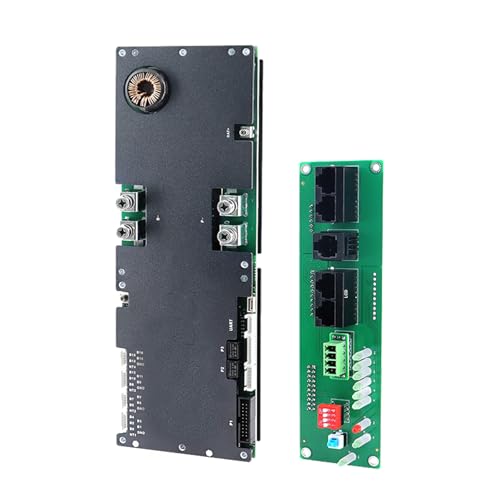

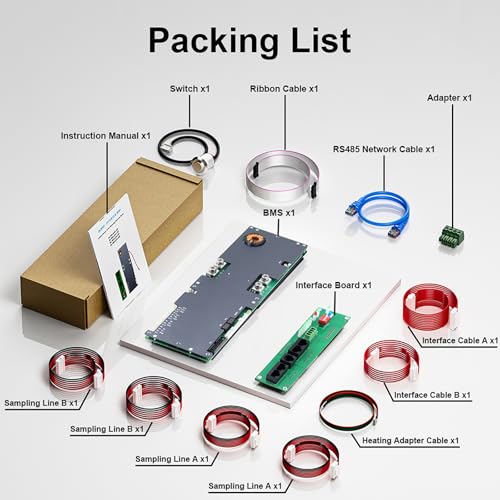

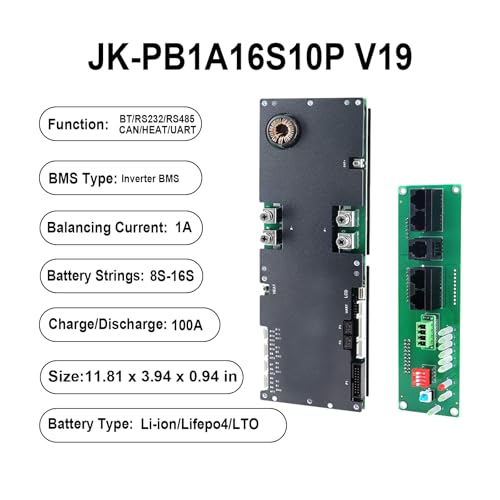

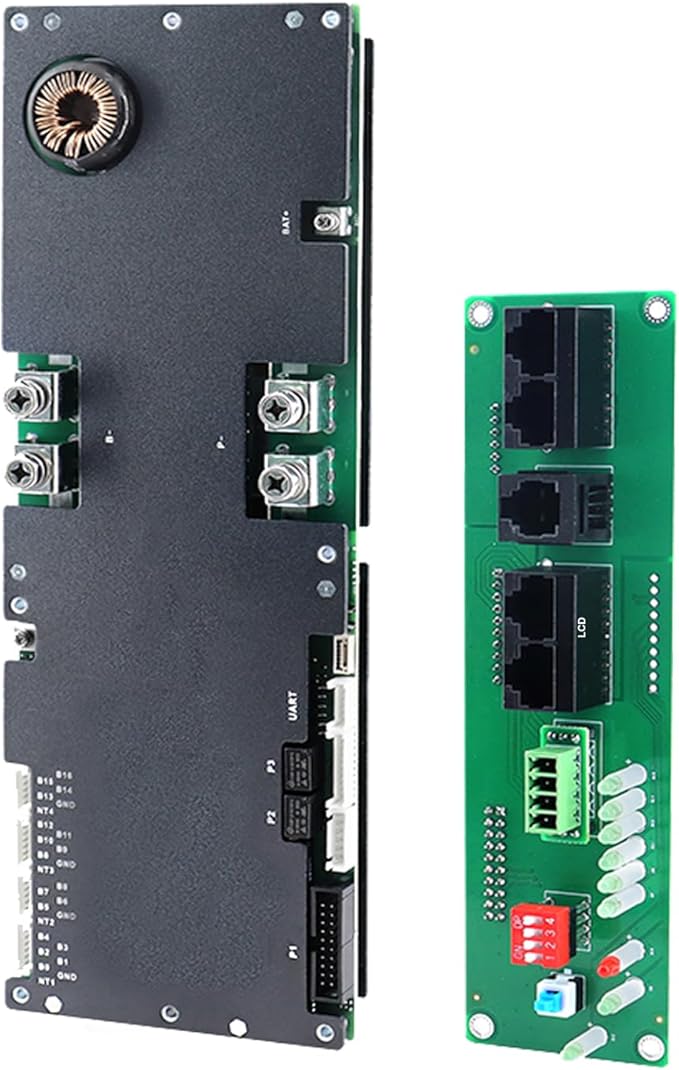

JKBMS Inverter BMS V19 version with additional UART port for the new display which shows parallel batteries in all details.Specification：Brand: JKBMSModel: JK-PB1A16S10P V19Dimensions: 300*100*24 mmCompatible With: LiFePO4, Li-ion, LTOPackage Contents:Protection board, interface board, communication cables, balancing cables, activation switch, etc.Functional Characteristics:LED Bluetooth statusindicatorAPP Bluetooth remote operationBattery capacity calculationSupports PC operationsHigh precision voltage acquisition (±3mV)High precision current acquisitionSupport information screen displayAccurate time loggingSupport RS485 communicationSupport CAN communicationSupport heating functionAlarm dry contact functionCharge overcurrent protectionCharge overvoltage protectionCharge over temperature protectionLow temperature protection during chargeDischarge overcurrent protectionDischarge undervoltage protectionDischarge over temperature protectionShort circuit protectionBattery parallel current limiting functionTechnical Specifications:Active Balance Current: 1ABattery Strings Supported: Li-ion: 7-16S, LiFePO4: 8-16S, LTO: 14S-16SContinuous Discharge/Charge Current: 100AMaximum DischargeCurrent(MAX2min): 200AConnection Instructions:Wiring Sequence:Solder B- and P- terminals first.Follow with B+ and P+ terminals.Connect battery sampling wires in ascending voltage order.System Activation:Power up the system and press the button to activate.Disconnecting:Remove charger or load first.Disconnect battery sampling wires in descending voltage order.Remove B+ and P+ terminals, then B- and P- terminals.

• Enhanced Safety with Full Protection Features: The V19 JK Inverter BMS offers comprehensive protection: overcharge, over-discharge, overcurrent, short circuit, and reverse connection. Ensures long-term safety and system reliability even in demanding energy storage setups
• Built for Home and Commercial Energy Storage: This BMS perfect for solar energy systems, home batteries, telecom base stations, and backup power. Designed for consistent performance and compatibility in both residential and industrial environments

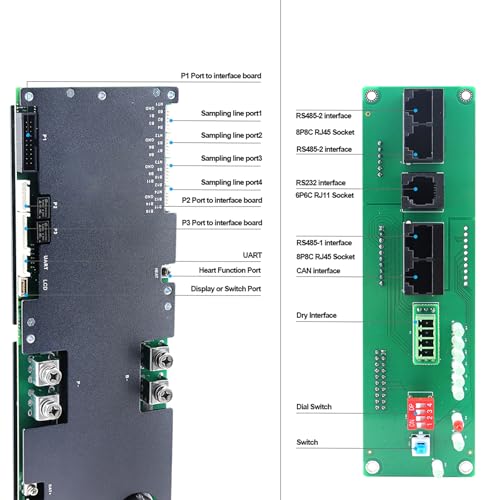

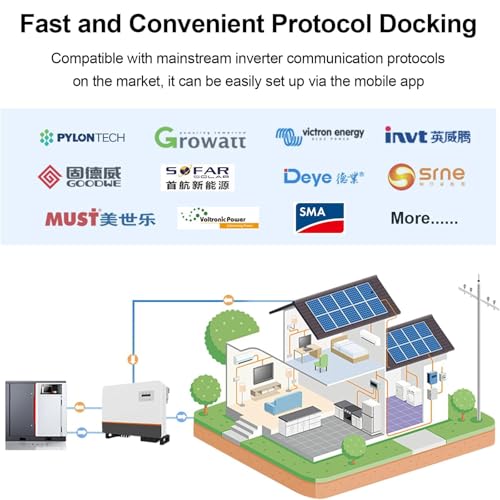

• Upgraded Communication with UART for New Display: The V19 version features an additional UART port, enabling connection to the latest JK display that shows detailed data from parallel battery packs. Also supports CAN, RS485, RS232, and app/PC configuration for seamless system integration
• Safe Parallel Expansion with 10A Current Limiting: Supports multiple battery packs in parallel with built-in 10A current limiting for safe energy expansion. Ideal for high-capacity storage systems requiring scalable architecture
• After-Sales Support: Monitor and configure in real-time using the “JK BMS” mobile app. Enjoy peace of mind with our dedicated customer support and one-year service
