Jayubien Radio Wiring Harness Kit 16Pin Iso Android Car Stereo Wire Harness With Butt Connectors 10Pin 20Pin Rca Adapter Gps Ant

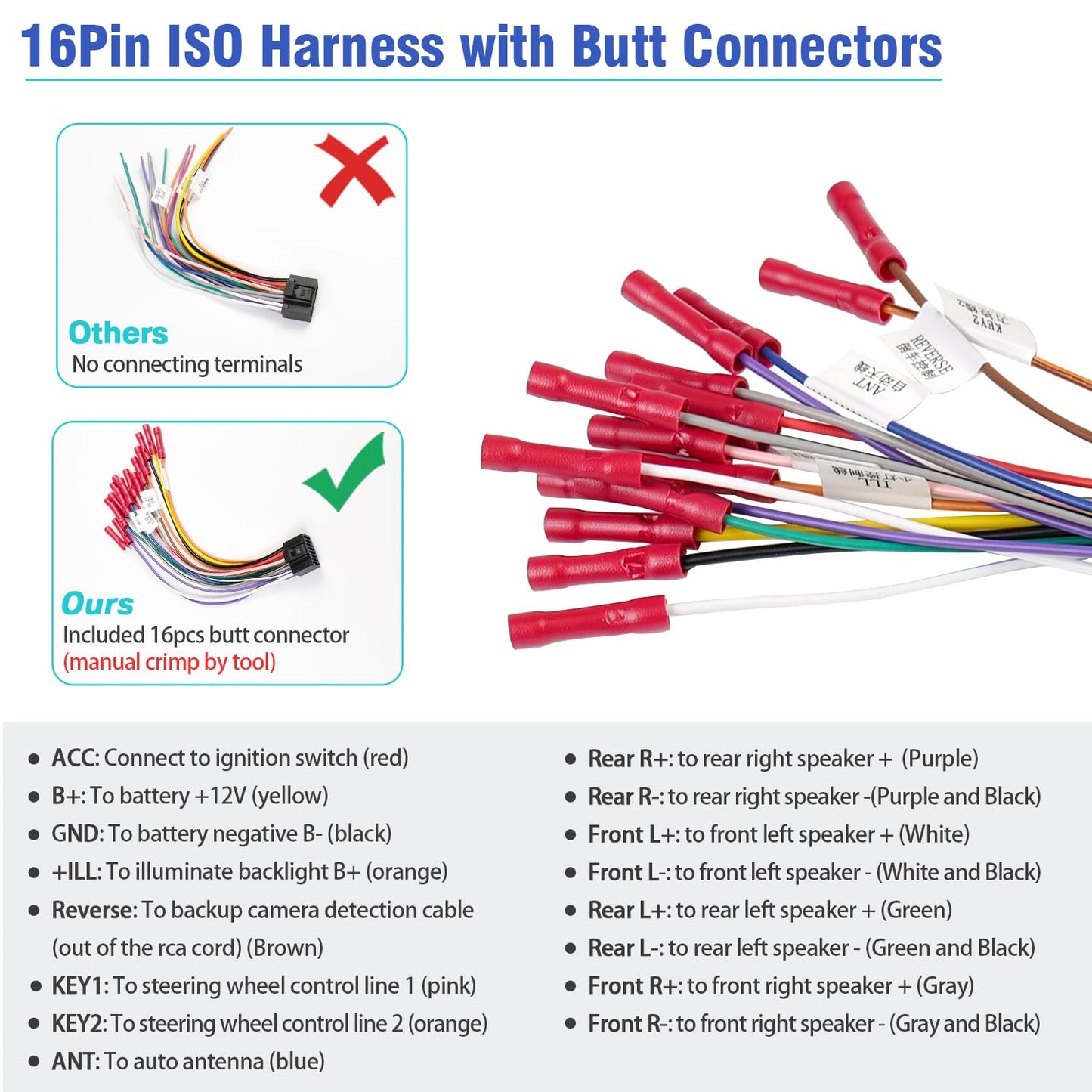

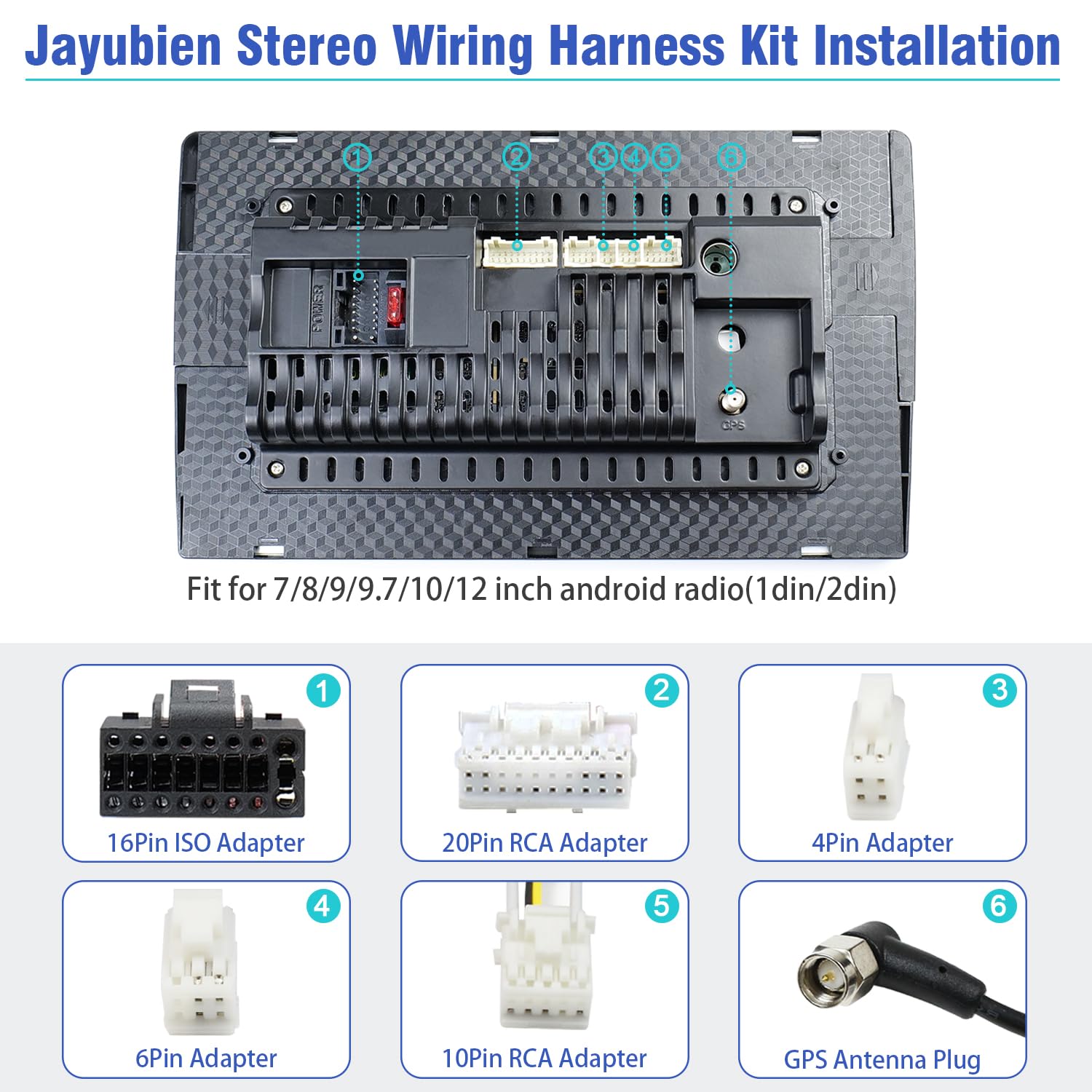

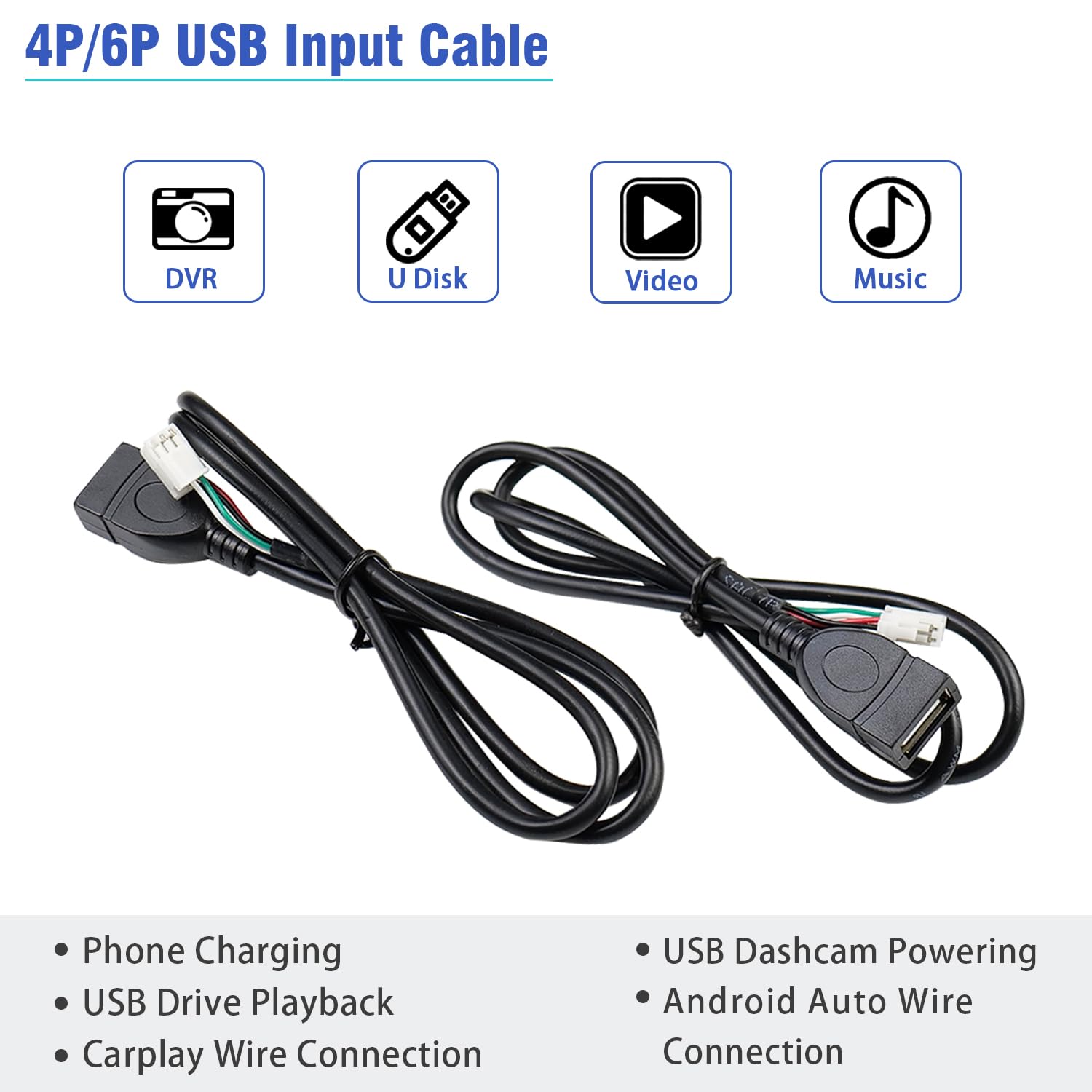

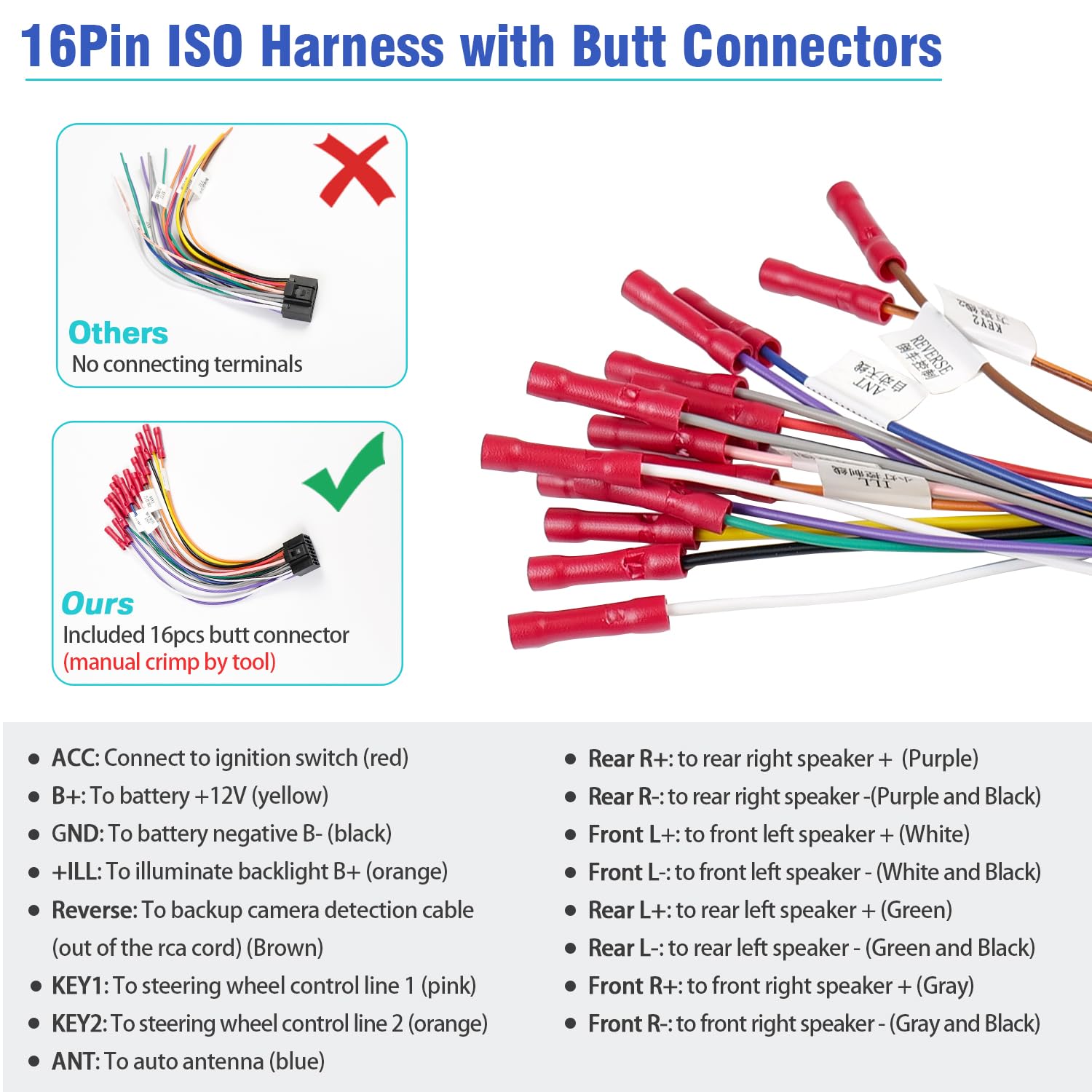

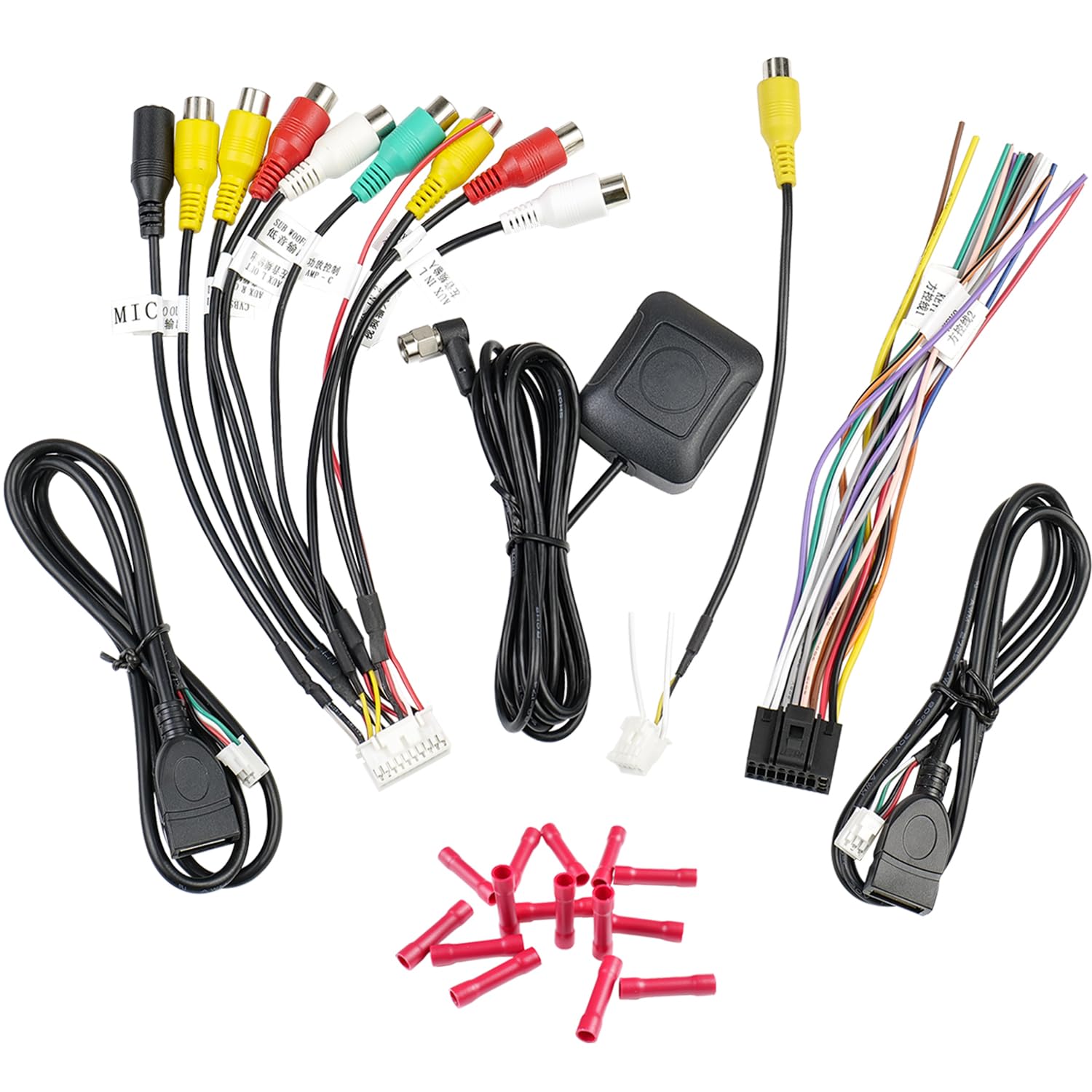

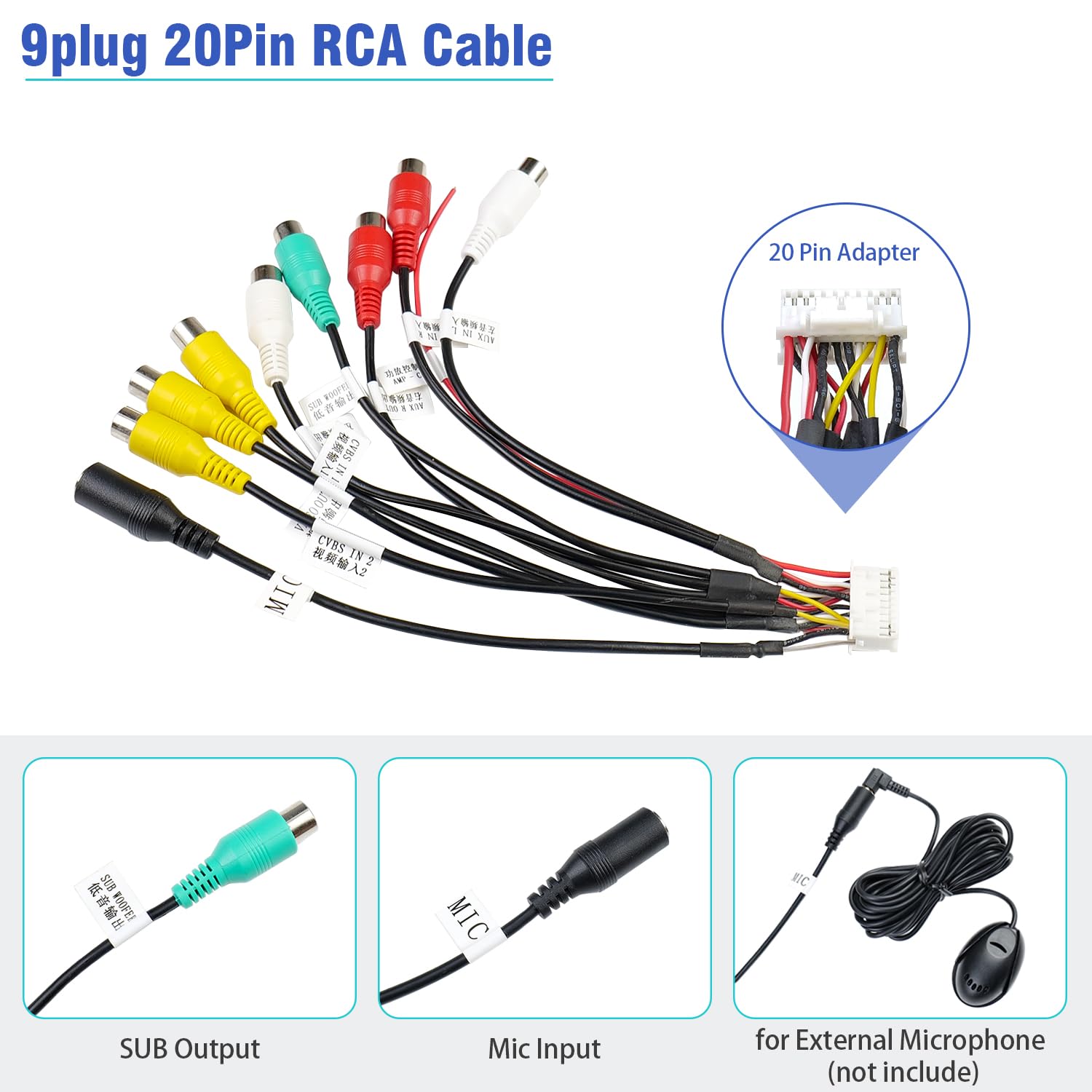

Product Package 1 X 16Pin Wiring Harness For Car Stereo 16 X Butt Connectors 1 X 20Pin Rca Adapter 1 X Gps Antenna 1 X 4Pin Usb Cable 1 X 6Pin Usb Cable 1 X 10Pin Cam-In Cable Wire Connection Of Radio Harness Adapter Acc: Connect To Ignition Switch (Red) B+: To Dc +12V (Yellow) Gnd : To Ground B- (Black) +Ill : To Ill B+ (Orange) Reverse: To Backup Camera Detection Cable (Out Of The Rca Cord) (Brown) Key1 : To Steering Wheel Control Line 1 (Pink) Key2 : To Steering Wheel Control Line 2 (Orange) Ant : To Auto Antenna (Blue) Rear R+: To Rear Right Speaker + (Purple) Rear R-: To Rear Right Speaker -(Purple And Black) Front L+: To Front Left Speaker + (White) Front L-: To Front Left Speaker - (White And Black) Rear L+: To Rear Left Speaker + (Green) Rear L-: To Rear Left Speaker - (Green And Black) Front R+: To Front Right Speaker + (Gray) Front R-: To Front Right Speaker - (Gray And Black) Wire Connection Of Car Rca Connector Black: Mic Input (Microphone Input) Yellow: Video Output (For Monitor Or Dvr) Yellow: Cvbs In 1 (For Camera) Yellow: Cvbs In 2 (For Camera) Red: Aux R Out (Aux Right Out) White: Aux L Out (Aux Left Out) Green: Subwoofer (Sub Output) Red: Aux In R (Aux In Right) White: Aux In L (Aux In Left) Red: Amp-C (Amp Control Wire)
